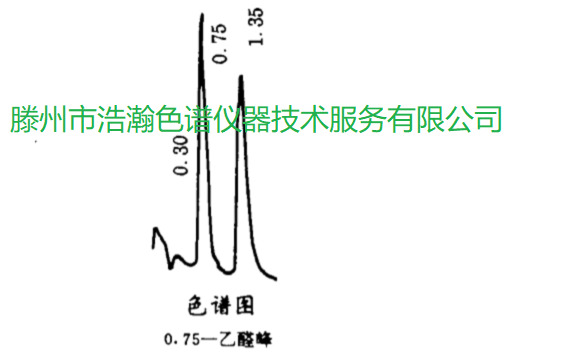

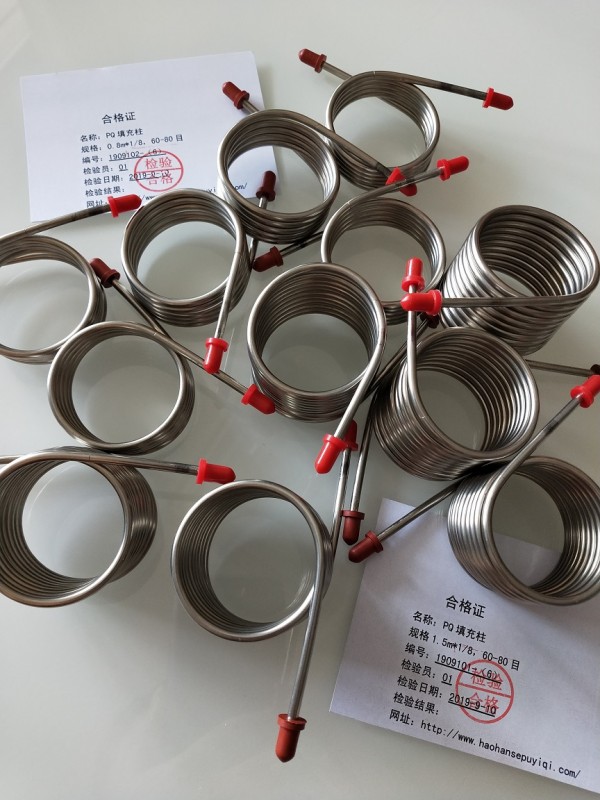

PQ柱在线测定光催化空气净化材料中乙醛

固定相：高分子小球

粒度：60-80目

规格：0.8m*1/8，1.5m*1/8

型号：PQ/Porapak Q
应用：GBT23761-2009光催化空气净化材料性能测试方法

本标准规定了空气净化用光催化材料的定义、原理、材料、测试装置、分析步骤、结果计算和试验报告。
本标准适用于在气相环境中使用的具有空气净化能力材料的光催化性能的测试。
本标准不适用于液相中使用的光催化净化材料。

PQ柱在线测定光催化空气净化材料中乙醛 图片：



On-line determination of non-methane total hydrocarbons in the atmosphere by PQ packed column
On-line determination of non-methane total hydrocarbons in the atmosphere by PQ packed column Details:

Stationary phase: polymer pellet

Particle size: 60-80 mesh

Specifications: 0.8m*1/8, 1.5m*1/8
Material: Stainless steel

Model: PQ/Porapak Q

With the development of modern industry, air pollution is also increasing. Methanol is one of the commonly used raw materials in the modern petrochemical industry. In the production process, it is inevitably released into the air. Methanol is a toxic, harmful, flammable and explosive substance. Non-methane total hydrocarbons (NMHC) generally refer to all volatile hydrocarbons other than methane. When the NMHC in the atmosphere exceeds a certain concentration, it directly damages the human health.

Tengzhou Haohao Chromatography Instrument Technology Service Co., Ltd. uses a single inlet six-port valve injection, Porapak Q column and two empty packed columns and a FID detector for gas chromatography to determine methane, total hydrocarbons and unorganized atmosphere. Non-methane total hydrocarbons, the determination results are in line with the requirements of unorganized emission monitoring standards in the comprehensive emission standards for atmospheric pollutants. The minimum detectable concentrations were 0.04 mg/m3 for methane, 0.04 mg/m3 for total hydrocarbons, 0.06 mg/m3 for non-methane, and 2 mg/m3 for methanol, and maintained good repeatability. The relative standard deviations were less than 2%. , to meet the requirements of testing. The method is simple, sensitive and has good resolution, and has good reproducibility and reliable accuracy.

On-line determination of non-methane total hydrocarbons in the atmosphere by PQ packed column
