MS13X填充柱应用之天然气分析

MS13X填充柱应用之天然气分析，液化石油气，二甲醚，甲缩醛，乙缩醛，乙醇，室内空气，焦炉煤气，炼厂气，天然气，变压器油，多氯联苯，植物油，6号溶剂残留，医疗器械，环氧乙烷，氨

MS13X填充柱应用之天然气分析
MS13X填充柱应用之天然气分析 详细信息：

Molecular sieves Type 13X，分子式:Na86[AlO2)86(SiO2)106] · xH2O 分子量:318.29
13X分子筛 ,60-80目,气相、液相色谱柱专用

名称：填充柱

固定相：分子筛

粒度：60-80目

规格：2m*3MM

型号：MS13X

应用：天然气中O2,N2,CH4分离

滕州市浩瀚色谱仪器技术服务有限公司，采用采用配有五阀(2个十通阀和3个六通阀)、七柱(2根毛细管柱和5根填充柱)和三检测器(氢火焰离子化检测器A、热导检测器B和C)的气相色谱法测定了天然气的组分。借助阀的切换系统及设置的分析程序,一次进样便可实现天然气常规组分的测定。检测器A用于烃类气体的检测,检测器B用于气体的检测,检测器C用于氢气检测。根据标准样品组分的保留时间对未知样品作定性检测,用外标法进行定量测定。方法的度符合标准GB/T 13610-2003中的规定,本方法所测得的由标准气体所混合组成的标准样品中,各组分的测定值与标准值之间的相对误差均小于5%。

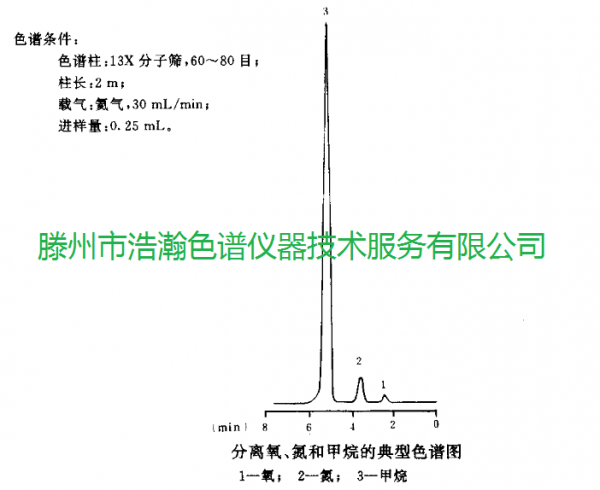

MS13X填充柱应用之天然气分析 测试谱图：

MS13X packed column application of natural gas analysis
MS13X packed column application of natural gas analysis Details:

Molecular sieves Type 13X, molecular formula: Na86[AlO2)86(SiO2)106] · xH2O molecular weight: 318.29
13X molecular sieve, 60-80 mesh, dedicated for gas and liquid chromatography columns

Name: Packed column

Stationary phase: molecular sieve

Granularity: 60-80 mesh

Specification: 2m*3MM

Model: MS13X

Application: Separation of O2, N2, CH4 in natural gas




Tengzhou Haohan Chromatography Instrument Technology Service Co., Ltd. adopts five valves (2 ten-port valves and 3 six-port valves), seven columns (2 capillary columns and 5 packed columns) and three detectors (hydrogen flame Gas chromatography of ionization detector A, thermal conductivity detector B and C) determined the composition of natural gas. With the aid of the valve switching system and the set analysis program, the determination of the conventional components of natural gas can be realized in one injection. Detector A is used for hydrocarbon gas detection, detector B is used for permanent gas detection, and detector C is used for hydrogen detection. According to the retention time of the standard sample components, the unknown samples were qualitatively detected, and the external standard method was used for quantitative determination. The precision of the method meets the requirements of the national standard GB/T 13610-2003. In the standard sample composed of a mixture of standard gases measured by this method, the relative error between the measured value of each component and the standard value is less than 5%.


MS13X packed column application of natural gas analysis test spectrum:
