MS-5 Å 水煤气净化过程不凝气测定填充柱应用岛津

水煤气净化过程不凝气测定填充柱应用岛津，液化石油气，二甲醚，甲缩醛，乙缩醛，乙醇，室内空气，变压器油，多氯联苯，医疗器械，环氧乙烷，三甲胺，增塑剂，芝麻香白酒，3-甲硫基丙醇，消毒剂

水煤气净化过程不凝气测定填充柱应用岛津
水煤气净化过程不凝气测定填充柱应用岛津 详细信息：

名称：填充柱
型号：MS-5 Å
规格：2m*3mm
应用：气体分析H2，O2，N2，CO，CH4

名称：填充柱
规格：2m*3mm
型号：GDX-502
应用：二氧化碳分析

水煤气及其生产技术水煤气是一种低热值煤气,主要成分为H2和CO,一般通过煤气化技术制得,主要用作合成氨、合成液体燃料等的原料。煤气化技术是指把经过适当处理的煤送入反应器如气化炉内,在一定的温度和压力下,通过氧化剂(空气或氧气和蒸气)以一定的流动方式(移动床、硫化床.

浩瀚色谱（山东）应用技术开发有限公司,采用GDX-502与MS13X填充柱测定水煤气净化过程不凝组成，柱效高，分离好，结果满意。

水煤气净化过程不凝气测定填充柱应用岛津 测试谱图：



Determination of non-condensable composition in water gas purification process
Determination of non-condensable composition in water gas purification process Details:

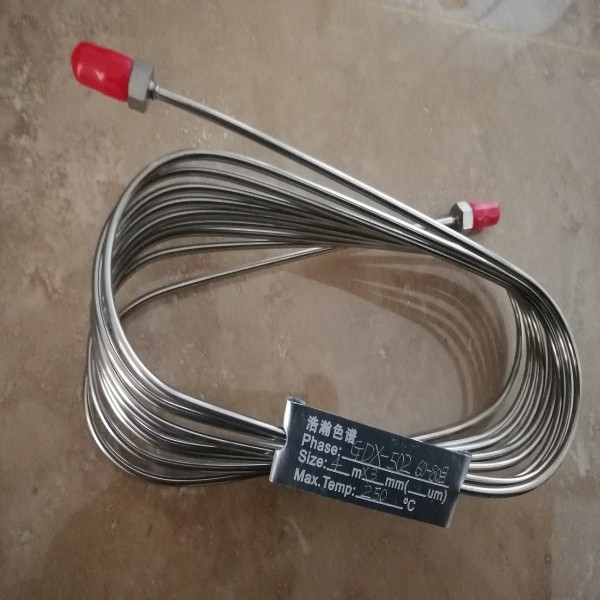

Name: Packed column
Specification: 2m*3mm
Model: GDX-502
Application: Carbon dioxide analysis

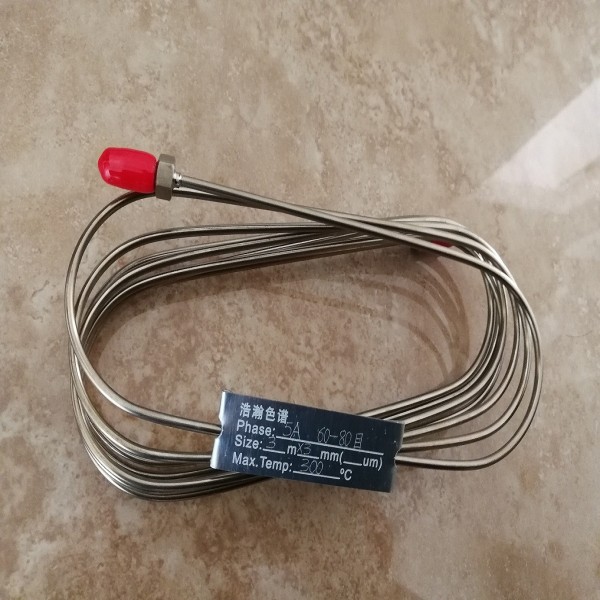

Name: Packed column
Model: MS-5 Å
Specification: 2m*3mm
Application: Permanent gas analysis H2, O2, N2, CO, CH4

Water gas and its production technology Water gas is a low calorific value gas, the main components of which are H2 and CO. It is generally produced through coal gasification technology and is mainly used as a raw material for synthetic ammonia and synthetic liquid fuels. Coal gasification technology refers to sending properly treated coal into a reactor such as a gasifier, and at a certain temperature and pressure, through an oxidant (air or oxygen and steam) in a certain flow mode (moving bed, fluidized bed).

Haohan Chromatography (Shandong) Applied Technology Development Co., Ltd. uses GDX-502 and MS13X packed columns to determine the non-condensable composition of the water gas purification process, with high column efficiency, good separation, and satisfactory results.

Determination of non-condensing composition in water gas purification process Test spectrum:
