TDX-01填充柱 聚合级乙烯丙烯中CO和CO2分析

名称：填充柱

规格：0.6m*3mm

型号：TDX-01

浩瀚色谱（山东）应用技术开发有限公司用1/100异三十碳烷对碳分子筛(TDX-01)进行改性,并结合采用小直径色谱柱,使柱效率大大提高,一氧化碳与二氧化碳得到了较好分离,在镍催化剂存在下,于360℃使一氧化碳和二氧化碳转化为甲烷,然后用氢火焰离子化检测器检出。方法的小检出量1ppm。可以满足聚合工艺的要求。本方法也可用于空气及其它性气体中微量一氧化碳和二氧化碳的测定。

聚合级乙烯丙烯中CO和CO2分析  测试谱图：



Analysis of CO and CO2 in polymer grade ethylene and propylene
Analysis of CO and CO2 in polymerization grade ethylene and propylene. Details:

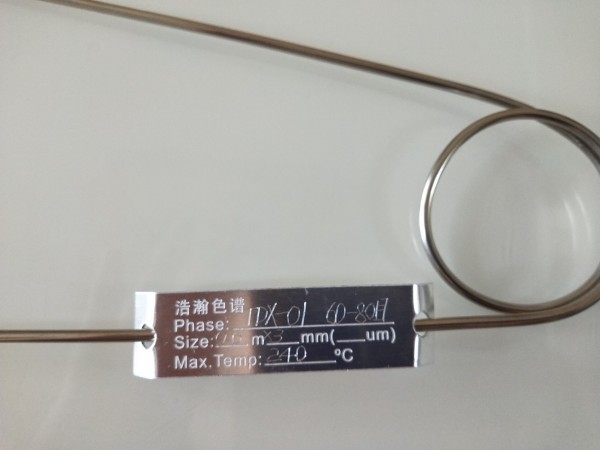

Name: Packed column

Specification: 0.6m*3mm

Model: TDX-01

Haohan Chromatography (Shandong) Application Technology Development Co., Ltd. modified the carbon molecular sieve (TDX-01) with 1/100 isotriaconane, and combined with the use of small diameter chromatographic columns, which greatly improved the column efficiency. Carbon monoxide and carbon dioxide were obtained. Better separation. In the presence of a nickel catalyst, carbon monoxide and carbon dioxide are converted into methane at 360°C, and then detected by a hydrogen flame ionization detector. The minimum detection amount of the method is 1 ppm. It can meet the requirements of the polymerization process. This method can also be used for the determination of trace amounts of carbon monoxide and carbon dioxide in air and other permanent gases.

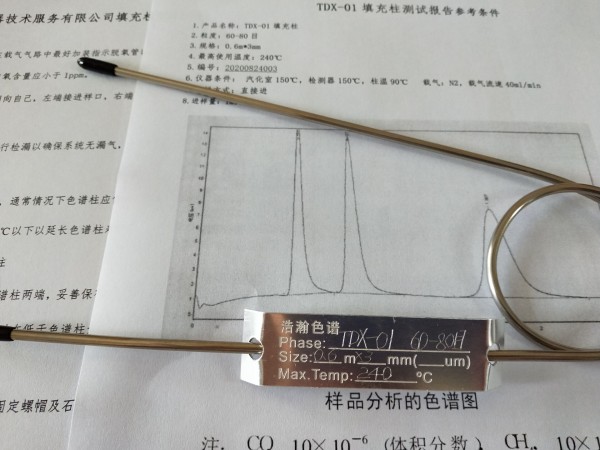

Analysis of CO and CO2 in polymer grade ethylene and propylene Test spectrum:
