PMFS-10 加长杆带支架的平面十通阀

主要用途:本阀门适用于气相色谱仪或其它仪器连接载气.辅助气和其它气源或切换气路的通道。

技术参数：
工作压力:0.6MPa
气密性:0.35MPa/cm2
安装尺寸:43*60
安装孔:12.5
进出气内接头:M8*1
加长杆带支架安装简单，方便。
应用：非甲烷总烃，苯系物，天然气，液化气，气体，焦炉煤气，炼厂气

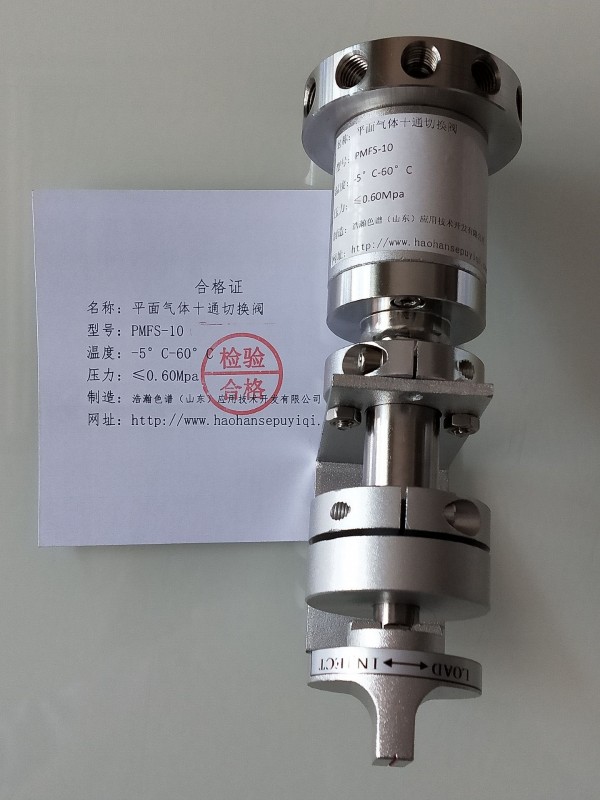

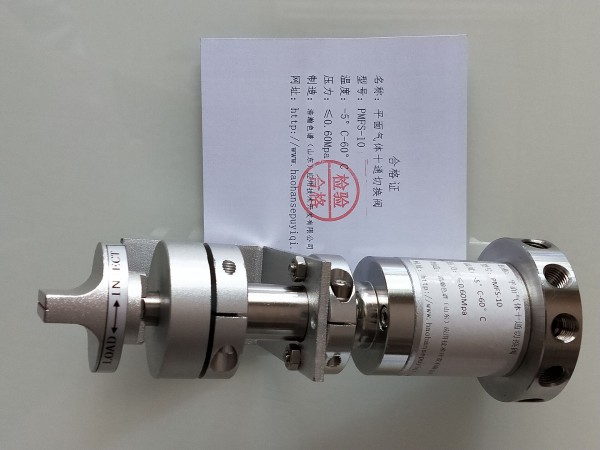

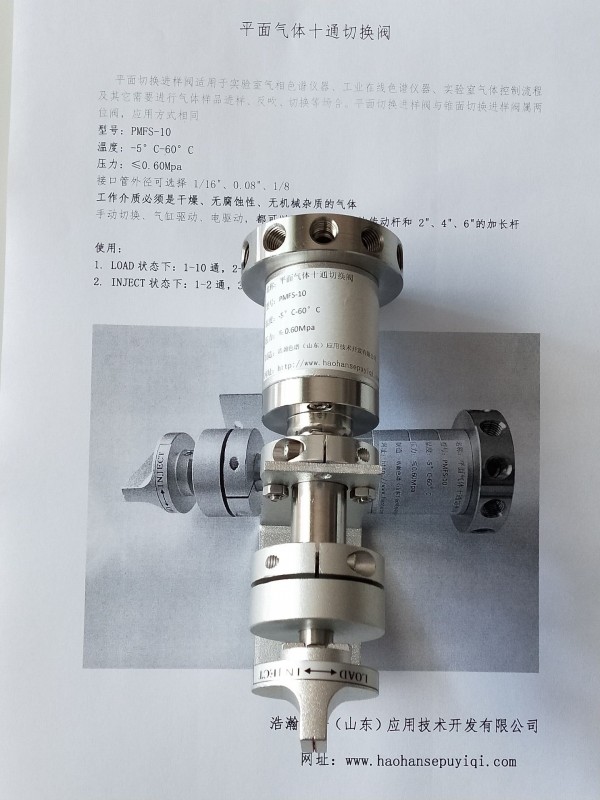

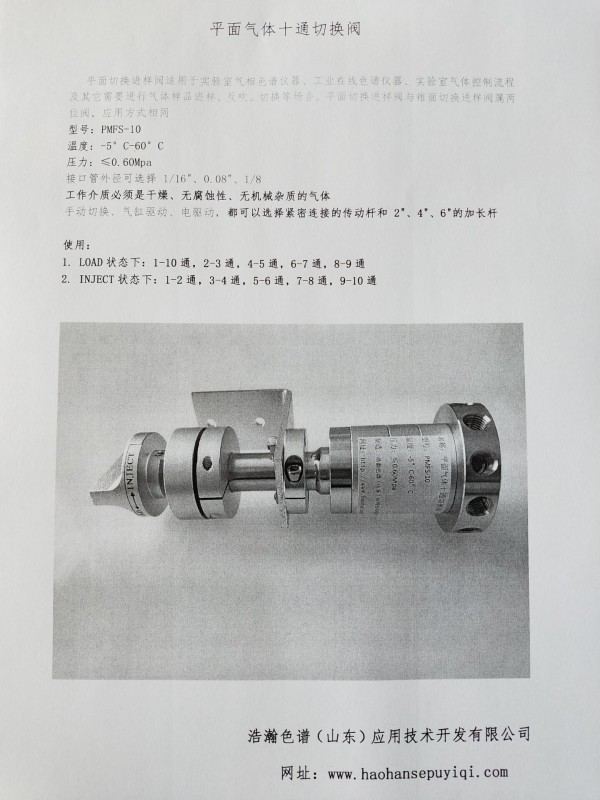

加长杆带支架的平面十通阀   图片：


Flat ten-way valve with extension rod and bracket
Plane 10-port valve with extension rod and bracket Details:

Flat 10-port valve Chromatographic injection valve 1/16, 2mm, 3mm 1/8 inch 10-port switching valve Precision gas valve
Main purpose: This valve is suitable for gas chromatograph or other instruments to connect carrier gas, auxiliary gas and other gas sources or to switch the gas path.

Technical Parameters:
Working pressure: 0.6MPa
Air tightness: 0.35MPa/cm2
Installation size: 43*60
Mounting hole: 12.5
Inlet and outlet air connector: M8*1
The extension rod with bracket is simple and convenient to install.
Applications: non-methane total hydrocarbons, benzene series, natural gas, liquefied gas, permanent gas, coke oven gas, refinery gas


Plane 10-port valve with extension rod and bracket Picture:
