SE-54毛细管柱测定 煤焦油苯、甲苯、苯酚、萘芴菲蒽芘
产品名称:SE-54毛细管柱测定 煤焦油苯、甲苯、苯酚、萘芴菲蒽芘
产品型号:SE-54毛细管柱测定
产品厂商:浩瀚色谱(山东)应用技术开发有限公司
简单介绍
煤焦油苯、甲苯、苯酚、萘芴菲蒽芘,芝麻香白酒,3-甲硫基丙醇,室内空气,焦炉煤气,炼厂气,天然气,变压器油,多氯联苯,植物油,增塑剂,塑化剂,氨水,氨气,乙酸乙酯,医疗器械
SE-54毛细管柱测定 煤焦油苯、甲苯、苯酚、萘芴菲蒽芘的详细介绍
煤焦油苯、甲苯、苯酚、萘芴菲蒽芘
煤焦油苯、甲苯、苯酚、萘芴菲蒽芘 详细信息:

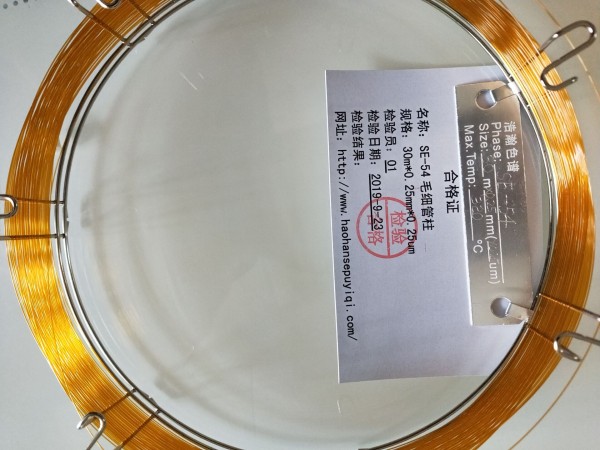

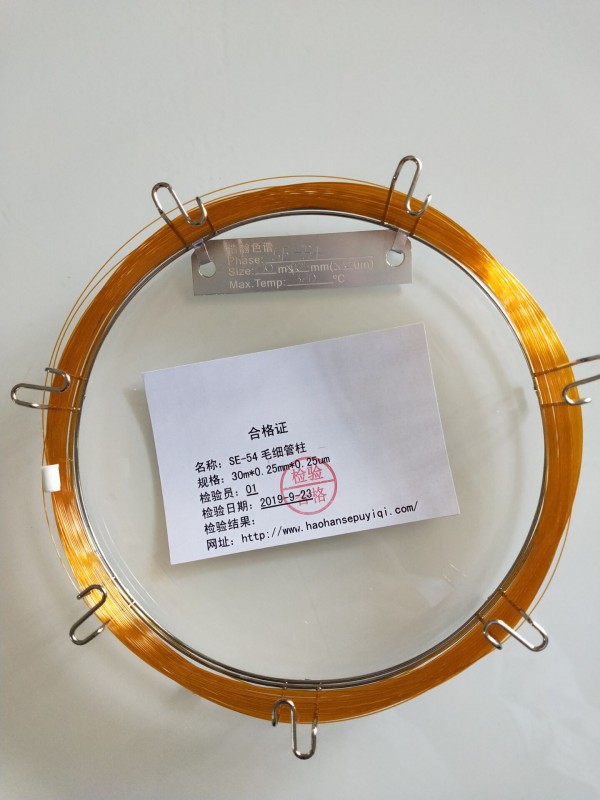

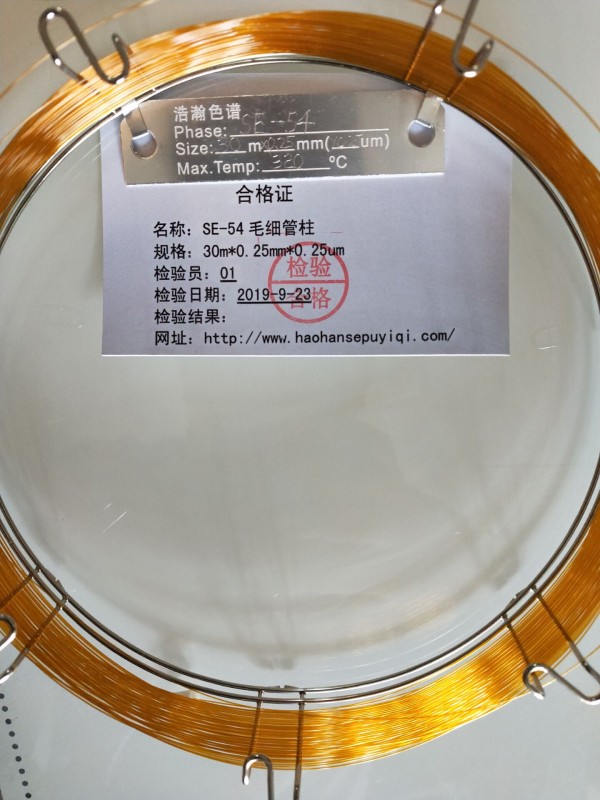

名称:毛细管柱
规格:30 m(长)×0.32 mm(内径)×0.25 μ m(膜厚),固定相为 100%二甲基聚硅氧烷或(5%-苯基)-甲基聚硅氧烷为填料的石英弹性毛细管柱,或能达到分离要求的同类毛细管柱。
型号:SE-54
应用:煤焦油苯、甲苯、苯酚、萘、芴、菲、蒽、芘的含量测定气相色谱法




Coal tar benzene, toluene, phenol, naphthalene fluorene phenanthrene pyrene
Coal tar benzene, toluene, phenol, naphthalene fluorene phenanthrene pyrene details:
Name: Capillary Column
Specification: 30 m (length) × 0.32 mm (inner diameter) × 0.25 μ m (film thickness), the statio nary phase is 100% dimethyl polysiloxane or (5%-phenyl)-methyl polysiloxane Filled silica elastic capillary column, or similar capillary column that can meet the separation requirements.
Model: SE-54
Application: Determination of the co ntent of coal tar benzene, toluene, phenol, naphthalene, fluorene, phenanthrene, anthracene and pyrene by gas chromatography
This standard specifies the principles, reagents and materials, instruments and equipment, samples, test procedures, results calculation, and precision for the determination of coal tar benzene, toluene, phenol, naphthalene, fluorene, phenanthrene, anthracene, and pyrene.
This standard applies to the determination of coal tar produced by the hydrogenation process of coal, and the correspo nding distillation products of coal tar produced by other coal co nversion processes can be implemented by reference.
The coal tar is dissolved in dichloromethane, the internal standard 4-bromofluorobenzene is quantitatively added to the solution, and a commercial capillary chromatographic column is used for complete separation. The sample was injected directly with a micro syringe, and the sample was carried by the carrier gas into the chromatographic column, and the co ntent of benzene, toluene, phenol, naphthalene, fluorene, phenanthrene, anthracene, and pyrene was analyzed using a hydrogen flame io nization detector (FID). Use the chromatographic workstation to compare the chromatographic peaks of the sample target and the standard sample target, qualitatively identify each target according to the retention time, and accurately quantify each target using the internal standard method.
Coal tar benzene, toluene, phenol, naphthalene fluorene phenanthrene pyrene test spectrum:
煤焦油苯、甲苯、苯酚、萘芴菲蒽芘 详细信息:
名称:毛细管柱
规格:30 m(长)×0.32 mm(内径)×0.25 μ m(膜厚),固定相为 100%二甲基聚硅氧烷或(5%-苯基)-甲基聚硅氧烷为填料的石英弹性毛细管柱,或能达到分离要求的同类毛细管柱。
型号:SE-54
应用:煤焦油苯、甲苯、苯酚、萘、芴、菲、蒽、芘的含量测定气相色谱法
本标准规定了煤焦油苯、甲苯、苯酚、萘、芴、菲、蒽、芘的含量测定的原理、试剂及材料、仪器和设备、样品、试验步骤、结果计算、精密度。
本标准适用于煤的加氢气化工艺产生的煤焦油的测定,其他煤转化工艺产生的煤焦油对应的蒸馏产物可参照执行。
用二氯甲烷溶解煤焦油,在该溶液中定量加入内标物4-溴氟苯,利用商品化毛细管色谱柱进行完全分离。用微量注射器直接进样,试样被载气带入色谱柱,采用氢火焰离子化检测器(FID)分析苯、甲苯、苯酚、萘、芴、菲、蒽、芘的含量。用色谱工作站,将试样目标物与标准样品目标物的色谱峰对比,根据保留时间对各目标物定性,利用内标法对各目标物准确定量。
煤焦油苯、甲苯、苯酚、萘芴菲蒽芘 测试谱图:
煤焦油苯、甲苯、苯酚、萘芴菲蒽芘 测试谱图:




Coal tar benzene, toluene, phenol, naphthalene fluorene phenanthrene pyrene
Coal tar benzene, toluene, phenol, naphthalene fluorene phenanthrene pyrene details:
Name: Capillary Column
Specification: 30 m (length) × 0.32 mm (inner diameter) × 0.25 μ m (film thickness), the statio
Model: SE-54
Application: Determination of the co
This standard specifies the principles, reagents and materials, instruments and equipment, samples, test procedures, results calculation, and precision for the determination of coal tar benzene, toluene, phenol, naphthalene, fluorene, phenanthrene, anthracene, and pyrene.
This standard applies to the determination of coal tar produced by the hydrogenation process of coal, and the correspo
The coal tar is dissolved in dichloromethane, the internal standard 4-bromofluorobenzene is quantitatively added to the solution, and a commercial capillary chromatographic column is used for complete separation. The sample was injected directly with a micro syringe, and the sample was carried by the carrier gas into the chromatographic column, and the co
Coal tar benzene, toluene, phenol, naphthalene fluorene phenanthrene pyrene test spectrum:
