HH-NMHC1754 非甲烷总烃捕集阱

 HH-NMHC1754，60-80目，广泛应用于气体、液体和固体中的挥发性物质或半挥发性物质的采集，亦可用于高湿度样品中的挥发物的采集，与短程热解吸系统连用，可检测到ppb水平的挥发物。

固定相：混合

粒度：60-80目

规格：HH-NMHC1754，其他规格可定制

材质：玻璃，不锈钢

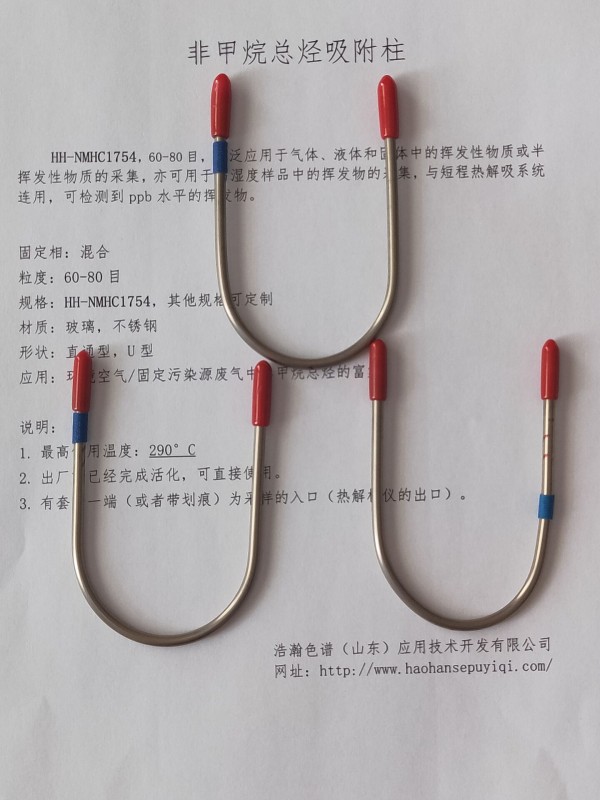

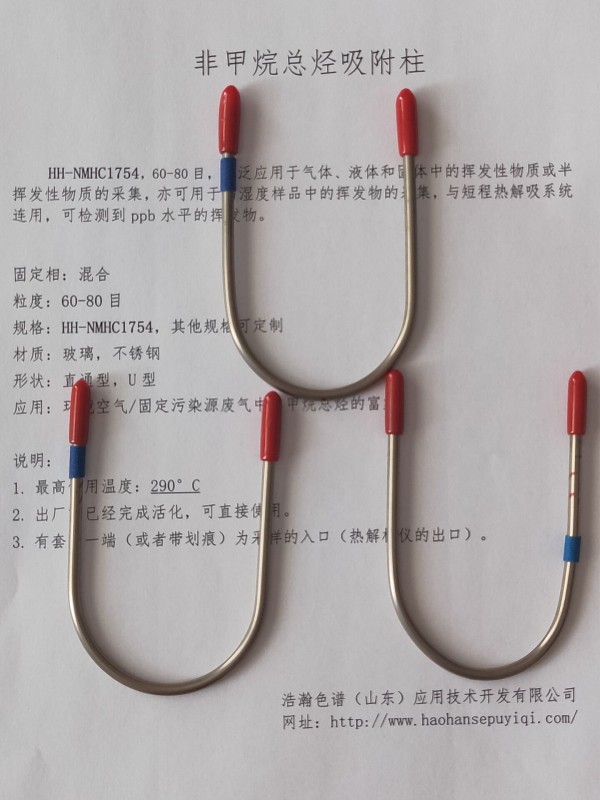

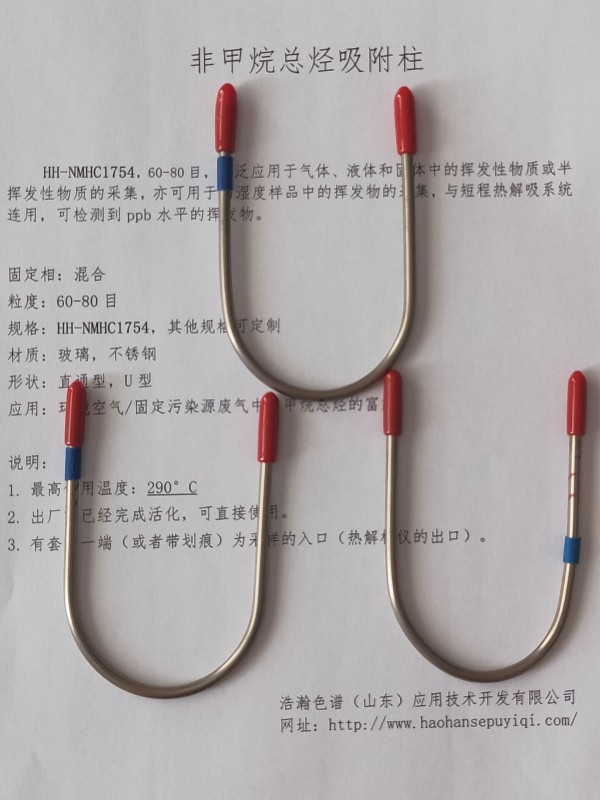

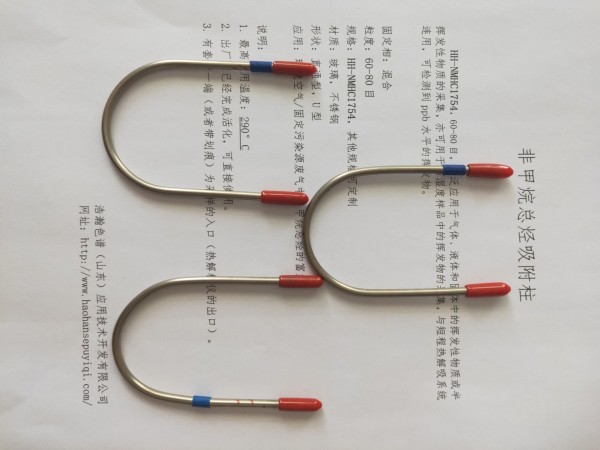

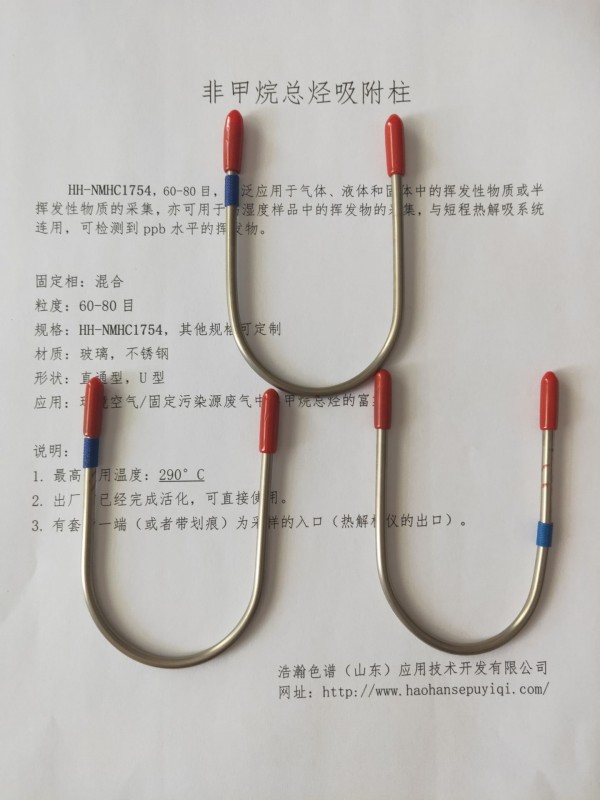

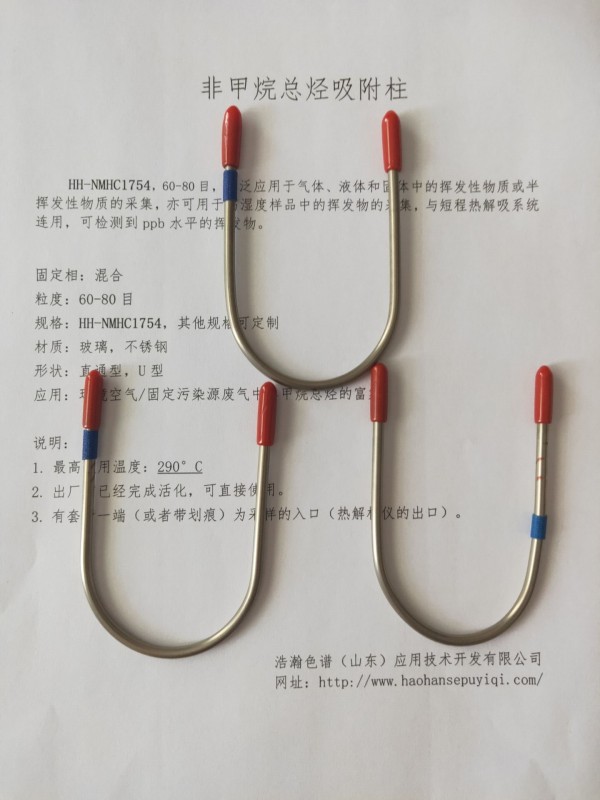

形状：直通型，U型

应用：环境空气/固定污染源废气中非甲烷总烃的富集

说明：

1. 高使用温度：290°C

2. 出厂前已经完成活化，可直接使用。

3. 有套管一端（或者带划痕）为采样的入口（热解析仪的出口）。

非甲烷总烃捕集阱  测试谱图：




Non-methane total hydrocarbon trap
Non-methane total hydrocarbon traps Details:

  HH-NMHC1754, 60-80 mesh, is widely used in the collection of volatile or semi-volatile substances in gases, liquids and solids. It can also be used in the collection of volatiles in samples with high humidity. It can be used in conjunction with short-range thermal desorption systems. , Volatiles at ppb level can be detected.

Stationary phase: mixed

Granularity: 60-80 mesh

Specification: HH-NMHC1754, other specifications can be customized

Material: glass, stainless steel

Shape: straight type, U type

Application: Enrichment of non-methane total hydrocarbons in ambient air/stationary pollution source exhaust gas



illustrate:

1. Maximum operating temperature: 290°C

2. It has been activated before leaving the factory and can be used directly.

3. One end of the sleeve (or with a scratch) is the sampling inlet (the outlet of the thermal desorber).

Non-methane total hydrocarbon trap test spectrum:
