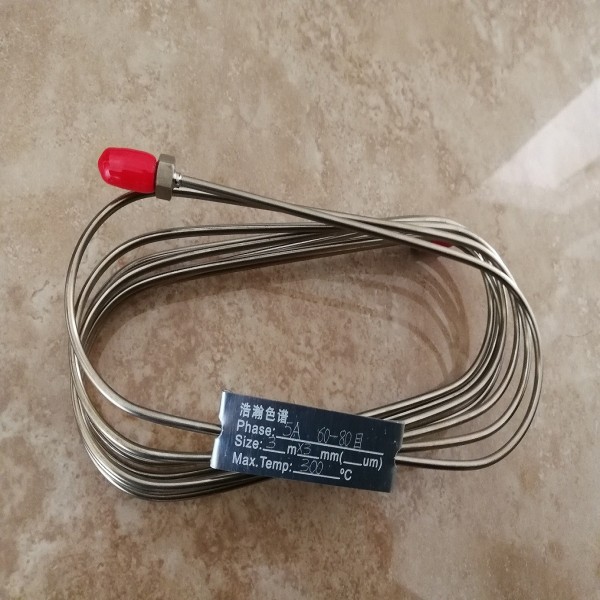

岛津5Å​ 新型性气体分析填充柱

名称：填充柱

规格：2m*1/8，3m*3mm，4m*3mm，5m*4mm，其他规格可定制1/8

型号：岛津5Å

应用·：永jiu性气体分析

浩瀚色谱（山东）应用技术开发有限公司研究开发了一种新的三柱单阀单检测器通用型性气体分析系统.该系统由两根直热式填充柱(5A分子筛及碳分子筛),一根填充型预柱,一个十通阀和一个热导检测器组成,可用于任何气体样品中O2,N2,CO,CO2和CH4的定量分析,单次分析周期小于8min,大相对标准偏差小于6%.

新型性气体分析填充柱 测试谱图：



New type of permanent gas analysis packed column
New type of permanent gas analysis packed column Details:

Name: Packed column

Specifications: 2m*1/8, 3m*3mm, 4m*3mm, 5m*4mm, other specifications can be customized 1/8

Model: 5A/MS5A/13X/MX13X

Application·: Yongjiu gas analysis

Haohan Chromatography (Shandong) Applied Technology Development Co., Ltd. has researched and developed a new three-column single-valve single-detector universal permanent gas analysis system. The system consists of two direct-heated packed columns (5A molecular sieve and carbon molecular sieve), A packed pre-column, a ten-port valve and a thermal conductivity detector can be used for the quantitative analysis of O2, N2, CO, CO2 and CH4 in any gas sample. The single analysis cycle is less than 8 minutes, and the maximum relative standard deviation is less than 6%.

New type of permanent gas analysis packed column Test spectrum:
