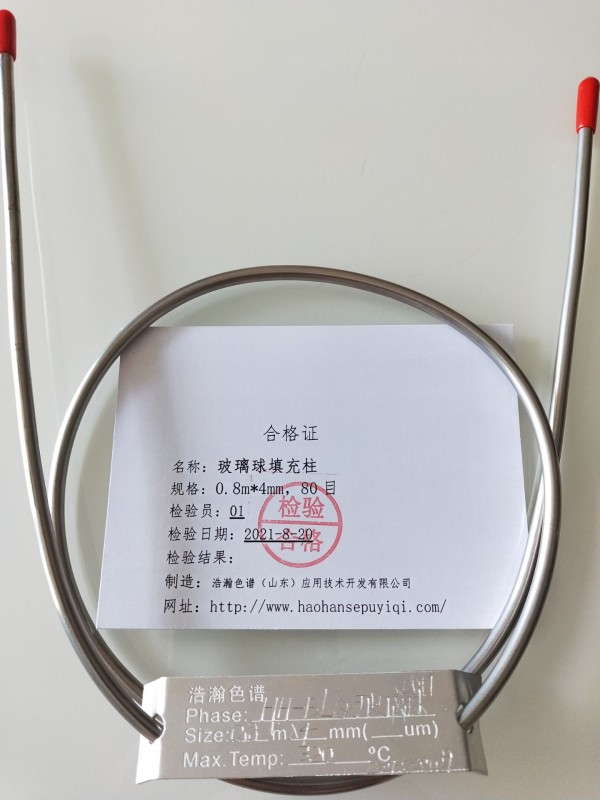

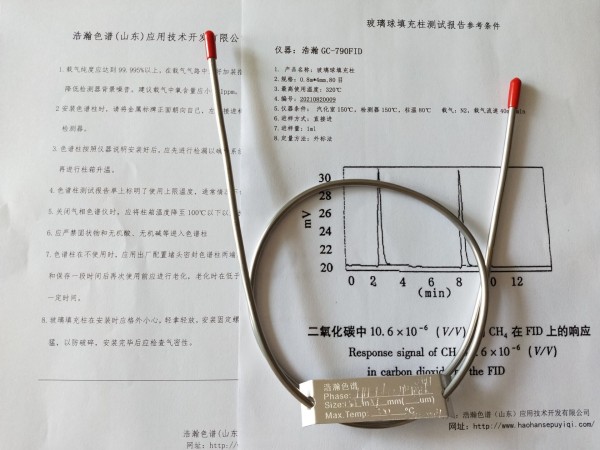

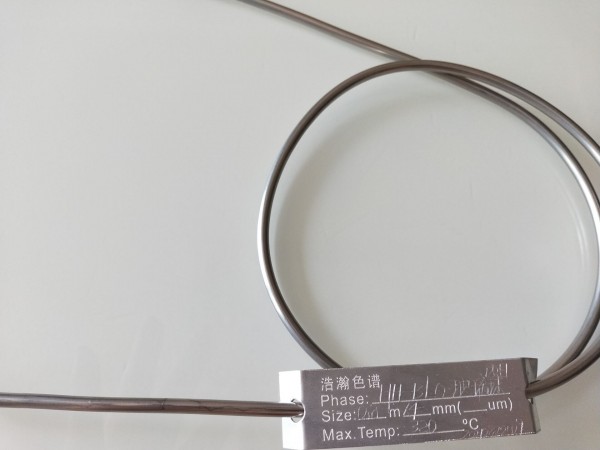

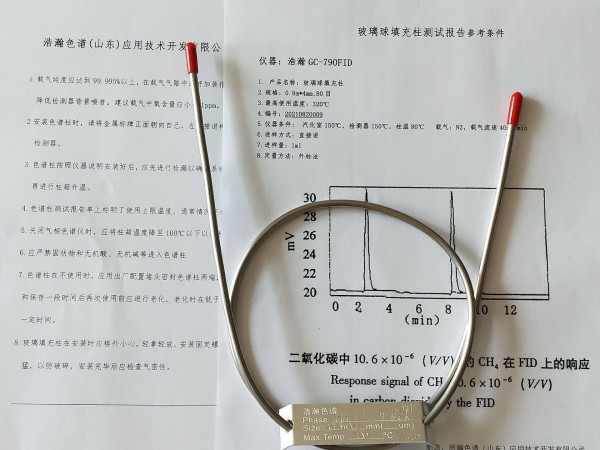

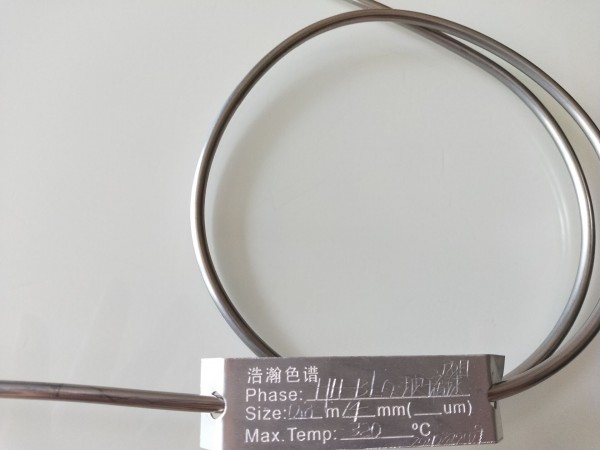

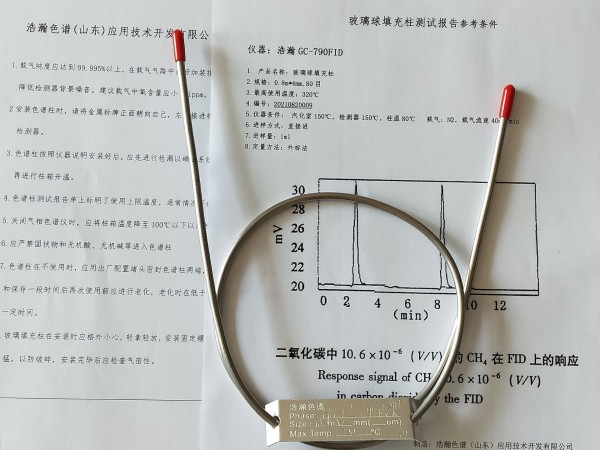

HH-BLQ 中国药典2020二氧化碳玻璃球柱

名称：药典二氧化碳专用柱

规格：4mm×0.8m,80目

粒度：80目

型号：HH-BLQ

应用：药典二氧化碳中碳氢化合物测定 中国药典2020年版

碳氢化合物照气相色谱法(通则0521)测定供试品气体取本品,即得对照品气体取甲烷含量为0.0020%的气体(以氮气为稀释剂)。色谱条件用玻璃球为填料的色谱柱(4mm×0.8m,80目);柱温为110℃;进样口温度为110℃;检测器为火焰离子化检测器,温度为120℃测定法精密量取供试品气体与对照品气体,分别注入气相色谱仪,在净化温度为360℃时测得的峰面积为相应空白值;精密量取供试品气体与对照品气体,分别注入气相色谱仪,测定峰面积,减去相应空白值后的峰面积为校正峰面积限度按外标法以校正峰面积计算,含碳氢化合物(以甲烷计)不得过0.0020%。

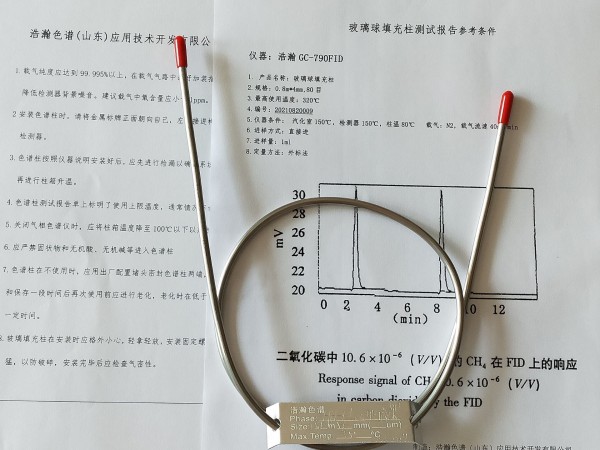

中国药典2020二氧化碳玻璃球柱  测试谱图：



Chinese Pharmacopoeia 2020 Carbon Dioxide Glass Sphere
Chinese Pharmacopoeia 2020 Carbon Dioxide Glass Sphere Details:

Name: Pharmacopoeia special column for carbon dioxide

Specification: 4mm×0.8m, 80 mesh

Granularity: 80 mesh

Model: HH-BLQ

Application: Determination of Hydrocarbons in Carbon Dioxide in Pharmacopoeia Chinese Pharmacopoeia 2020 Edition

Hydrocarbons are determined according to gas chromatography (General Principle 0521) to take this product, and the reference gas is obtained. The gas with methane content of 0.0020% (with nitrogen as the diluent). The chromatographic conditions use a chromatographic column filled with glass balls (4mm×0.8m, 80 mesh); the column temperature is 110°C; the inlet temperature is 110°C; the detector is a flame ionization detector, and the temperature is 120°C. The measurement method is precise Measure the test gas and reference gas and inject them into the gas chromatograph respectively. The peak area measured when the purification temperature is 360°C is the corresponding blank value; accurately measure the test gas and reference gas and inject them into the gas chromatograph. The peak area is determined by the instrument, and the peak area after subtracting the corresponding blank value is the calibrated peak area limit. The peak area is calculated as the calibrated peak area by the external standard method, and the hydrocarbon content (calculated as methane) shall not exceed 0.0020%.

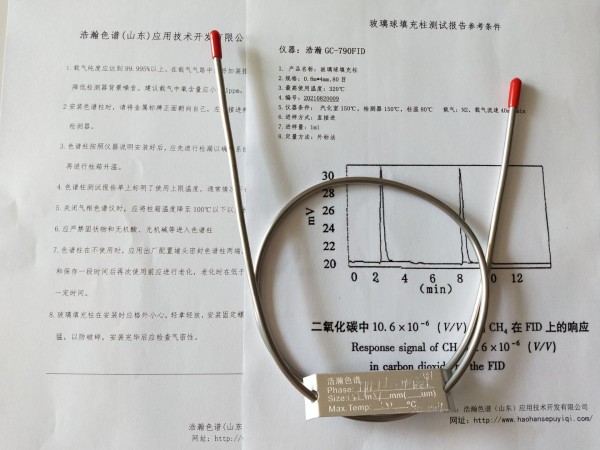

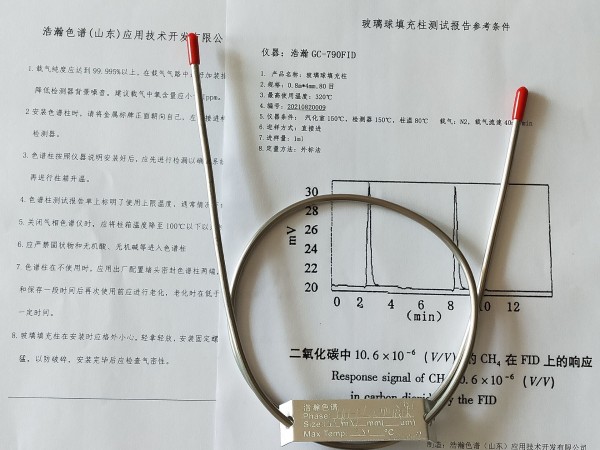

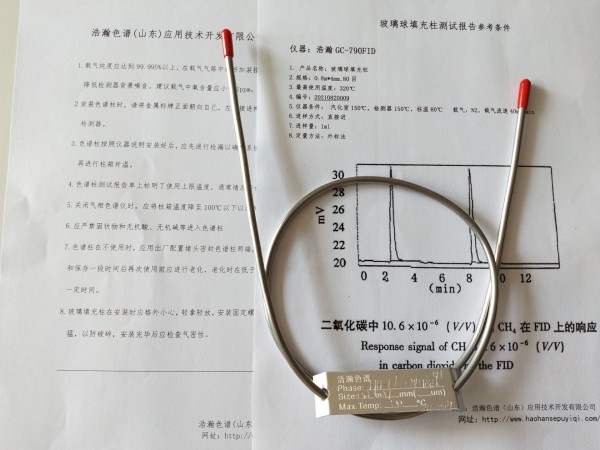

Chinese Pharmacopoeia 2020 carbon dioxide glass bulb test spectrum:
