MnCL2/γ-AL2O3改性氧化铝填充柱 气相色谱法分析氢同位素气体

气相色谱法分析氢同位素气体，芝麻香白酒，3-甲硫基丙醇，室内空气，焦炉煤气，炼厂气，天然气，变压器油，多氯联苯，植物油，增塑剂，室内空气TVOC，变压器油溶解气，氨水，氨气

气相色谱法分析氢同位素气体
气相色谱法分析氢同位素气体 详细信息：

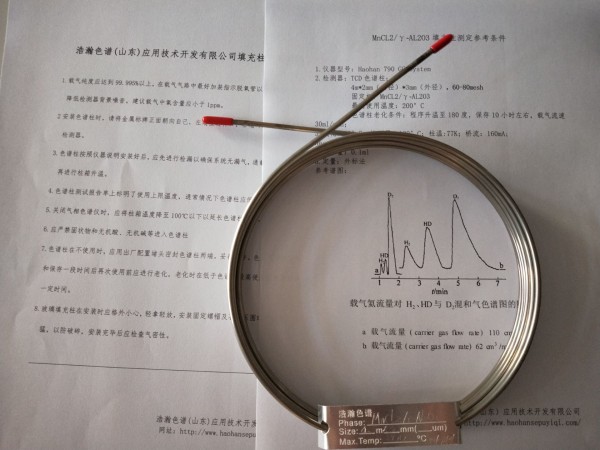

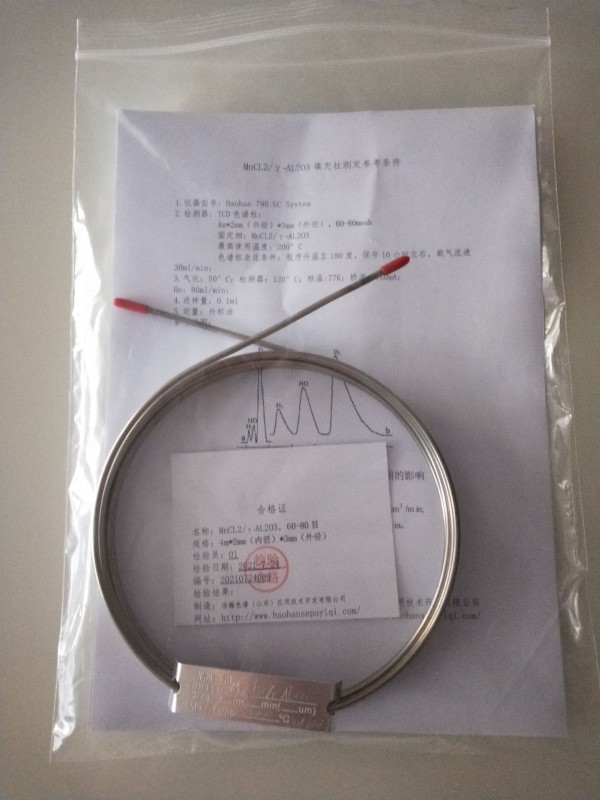

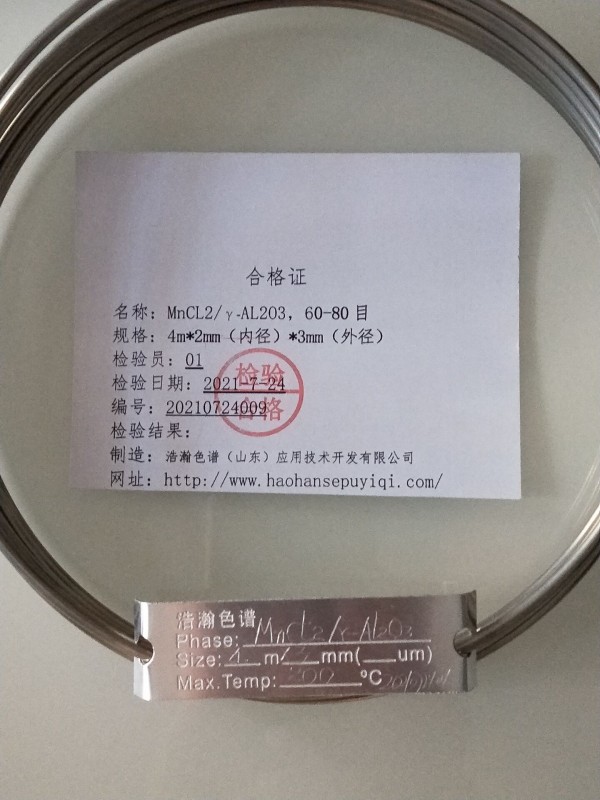

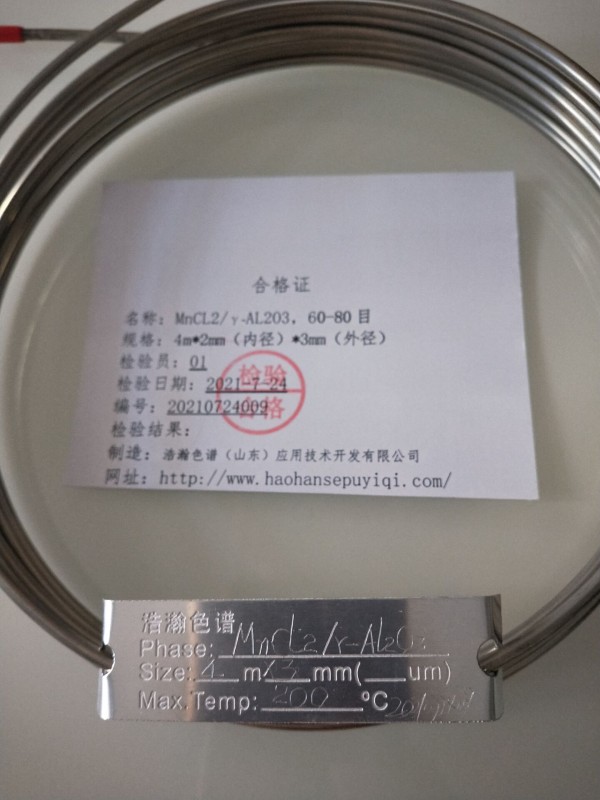

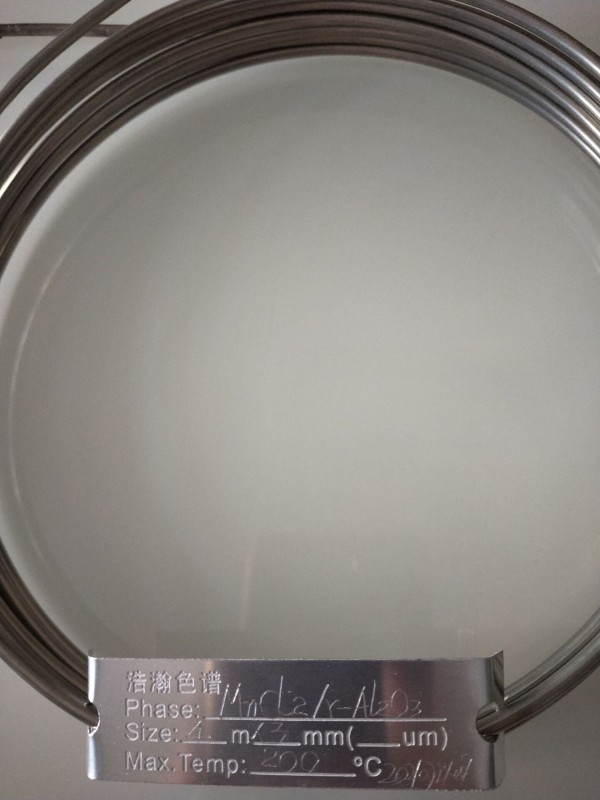

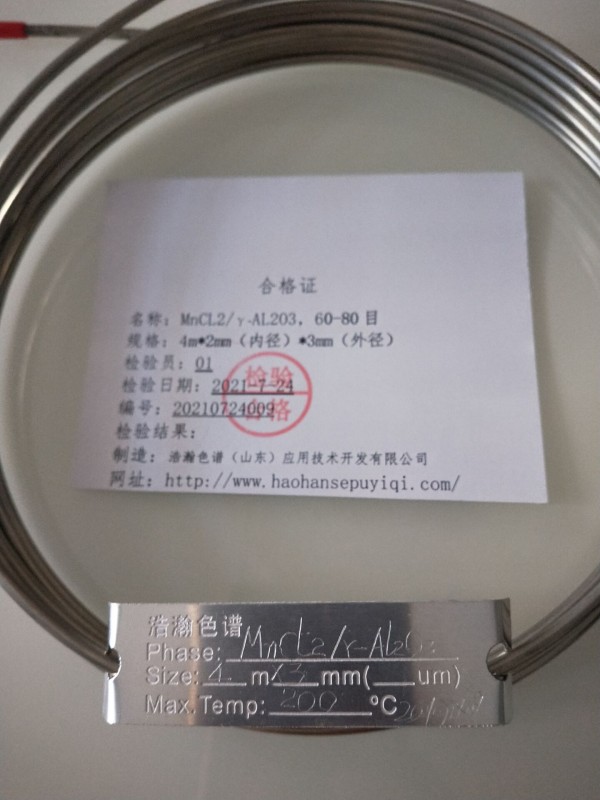

名称：改性氧化铝填充柱
规格：4m*3mm
型号：MnCL2/γ-AL2O3，60-80目

应用：氢同位素测定

浩瀚色谱（山东）应用技术开发有限公司针对氢同位素气体H2、HD与D2之间难以定量分析,研究对常规气相色谱仪做了改进,使用固定相为改性氧化铝的双填充柱在液氮温度(77.4K)下分析H2、HD与D2的定量组成。考察了桥流、检测温度、载气流量、进样量与不同载气因素对H2、HD与D2保留时间、峰形与信号灵敏度的影响。实验结果表明在桥流180mA、检测温度120℃、氦载气流量110cm3/min与进样量0.1mL的检测条件下,该分析系统可以使H2、HD与D2的保留时间分别缩短66s、79s与94s,并得到较好的峰形与定量结果。

气相色谱法分析氢同位素气体  测试谱图：



Analysis of Hydrogen Isotope Gas by Gas Chromatography
Gas Chromatography Analysis of Hydrogen Isotope Gas Details:

Name: Modified alumina packed column
Specification: 4m*3mm
Model: MnCL2/γ-AL2O3, 60-80 mesh

Application: hydrogen isotope determination



Haohan Chromatography (Shandong) Application Technology Development Co., Ltd. is difficult to quantitatively analyze the hydrogen isotope gas H2, HD and D2. The research has improved the conventional gas chromatograph, using a double packed column with a modified alumina as the stationary phase in liquid nitrogen. Analyze the quantitative composition of H2, HD and D2 at temperature (77.4K). The effects of bridge current, detection temperature, carrier gas flow rate, sample amount and different carrier gas factors on the retention time, peak shape and signal sensitivity of H2, HD and D2 were investigated. The experimental results show that under the detection conditions of bridge current 180mA, detection temperature 120°C, helium carrier gas flow rate 110cm3/min and sample volume 0.1mL, the analysis system can shorten the retention time of H2, HD and D2 to 66s and 79s, respectively. And 94s, and get better peak shape and quantitative results.

Gas chromatography analysis of hydrogen isotope gas test spectrum:
