5Å​分子筛 填充柱测定丁烯氧化脱氢制丁二烯中氧氮

填充柱测定丁烯氧化脱氢制丁二烯中氧氮，液化石油气，二甲醚，甲缩醛，乙缩醛，乙醇，室内空气，焦炉煤气，炼厂气，变压器油溶解气，乙酸乙酯，医疗器械，变压器油溶解气，过氧化物

填充柱测定丁烯氧化脱氢制丁二烯中氧氮
填充柱测定丁烯氧化脱氢制丁二烯中氧氮 详细信息：

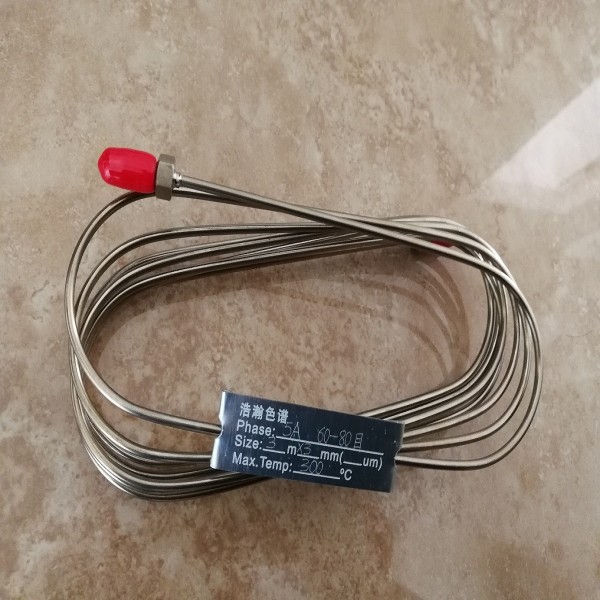

名称：填充柱
规格：3m*3mm
型号：5Å

采用H-198铁系催化剂,在φ3.4m流化床上进行丁烯氧化脱氢制丁二烯的实际操作。讨论了生产过程中的原料组成、反应温度、氧烯比、水烯比、丁烯空速及催化剂等因素对操作的影响。认为适宜的操作条件为:原料中异丁烯含量≤0.5％(质量),反应温度375±8℃,反应器入口压力0.039—0.059 MPa,氧烯比0.65—0.70(mol比),水烯比6—10(mol比),丁烯空速185—200h~(-1)。在此条件下,丁二烯收率可达63.25％,选择性达87.8％。

浩瀚色谱（山东）应用技术开发有限公司，采用5A分子筛填充柱测定 丁烯氧化脱氢制丁二烯生产中O2,N2的含量，柱效高，分离好，结果满意。

填充柱测定丁烯氧化脱氢制丁二烯中氧氮 测试谱图：



Determination of Oxygen and Nitrogen in Butadiene Produced by Oxidative Dehydrogenation of Butene by Packed Column
Packed column for determination of oxygen and nitrogen in butadiene oxidative dehydrogenation of butene

Name: Packed column
Specification: 3m*3mm
Model: 5A

Using H-198 iron-based catalyst, the actual operation of butadiene oxidative dehydrogenation to butadiene is carried out on a φ3.4m fluidized bed. The influence of factors such as raw material composition, reaction temperature, oxygen-to-olefin ratio, water-to-olefin ratio, butene space velocity and catalyst in the production process on the operation is discussed. The suitable operating conditions are considered as follows: the content of isobutylene in the raw materials is ≤0.5% (mass), the reaction temperature is 375±8°C, the inlet pressure of the reactor is 0.039-0.059 MPa, the oxygen-to-ene ratio is 0.65-0.70 (mol ratio), and the water-to-ene ratio is 6- 10 (mol ratio), butene space velocity 185-200h~(-1). Under these conditions, the butadiene yield can reach 63.25%, and the selectivity can reach 87.8%.

Haohan Chromatography (Shandong) Applied Technology Development Co., Ltd. uses a 5A molecular sieve packed column to determine the content of O2 and N2 in the production of butadiene by oxidative dehydrogenation of butene. The column efficiency is high, the separation is good, and the results are satisfactory.

Packed column for determination of oxygen and nitrogen in butadiene oxidative dehydrogenation of butene. Test spectrum:
