5%Carbowax 20M Carbopack B填充柱 静态顶空气相色谱法测定空气中甲醇含量

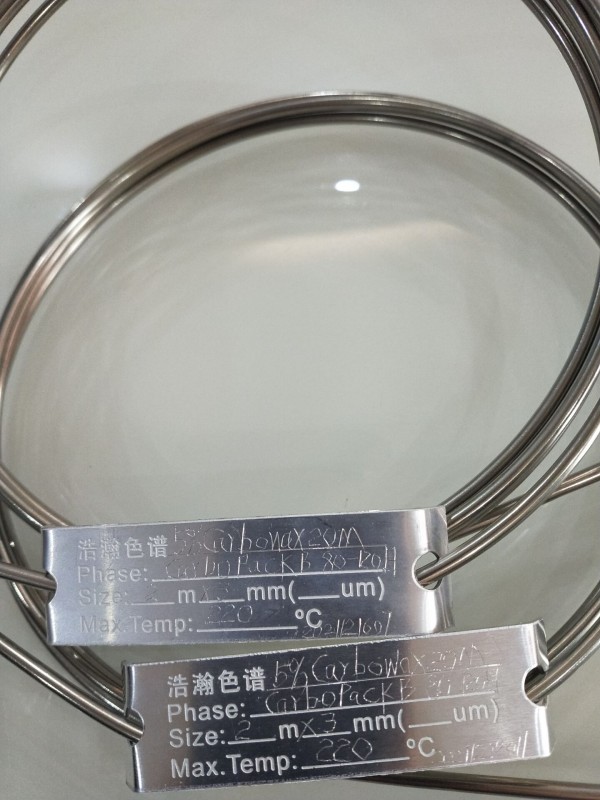

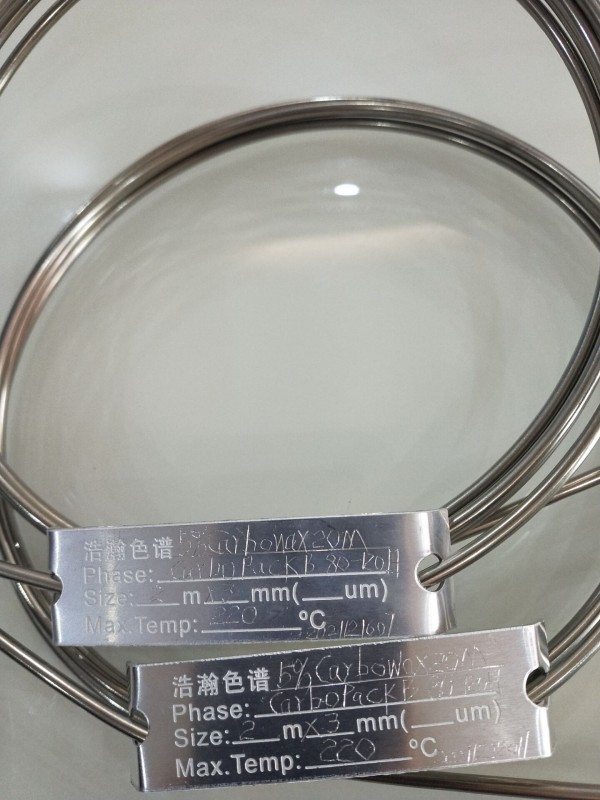

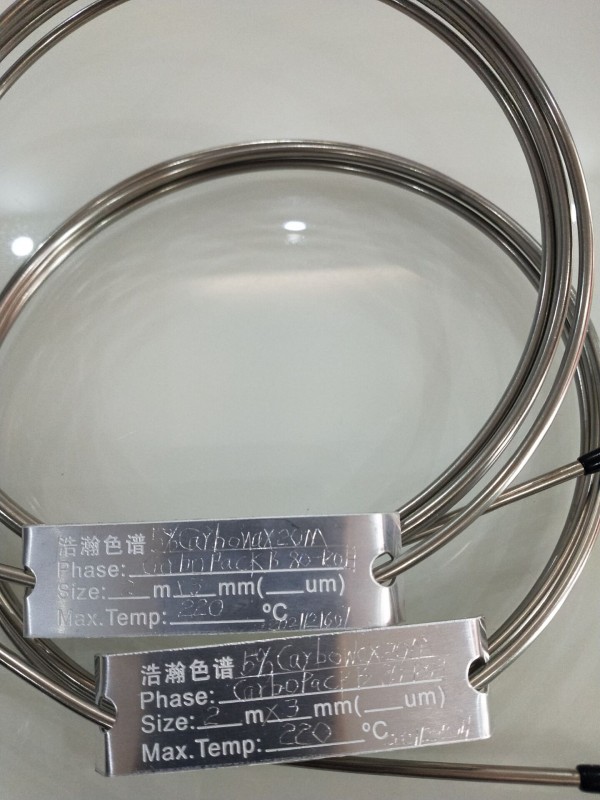

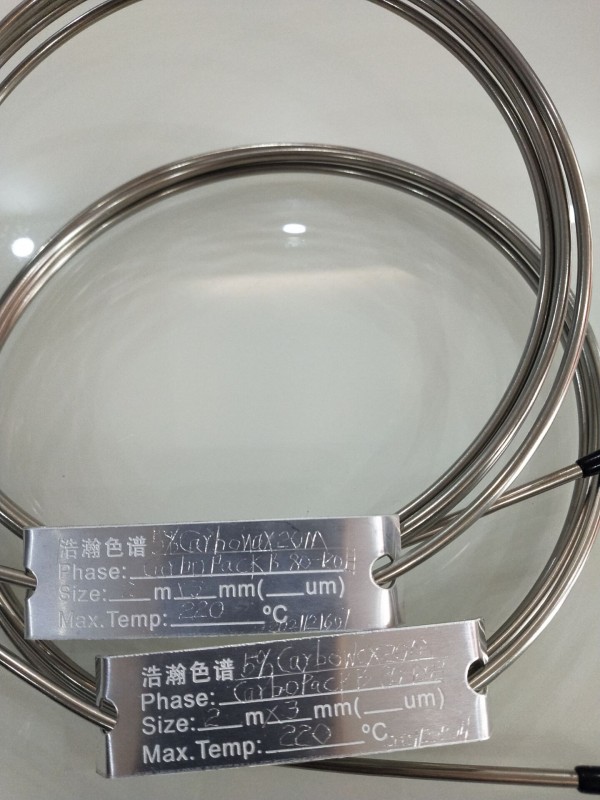

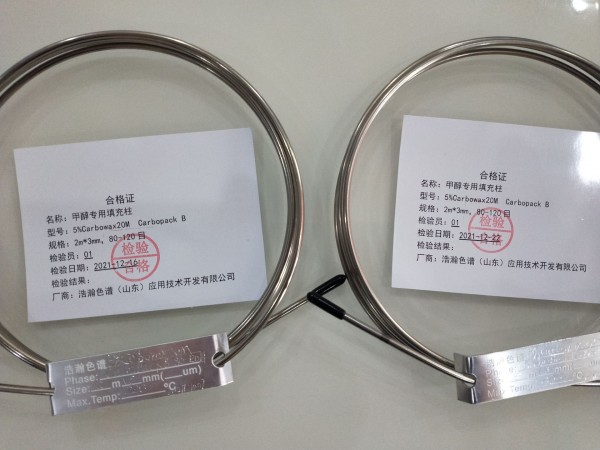

名称：填充柱

色谱固定液：5%聚乙二醇
载体：石墨炭黑80-120目

规格：2m*3mm，2m*1/8

型号：5%Carbowax 20M Carbopack B

应用： HJ T33-1999 固定污染源排气中甲醇的测定气相色谱法

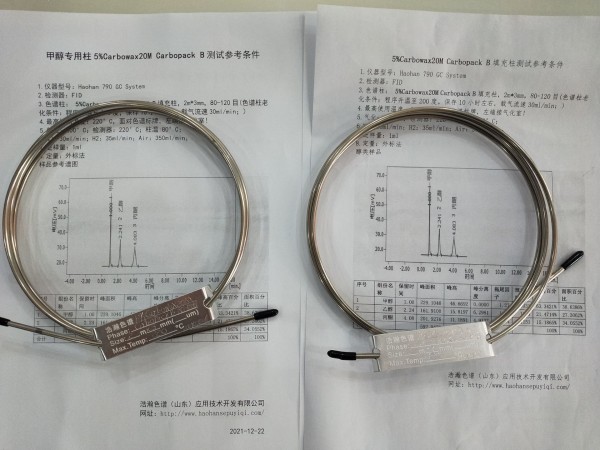

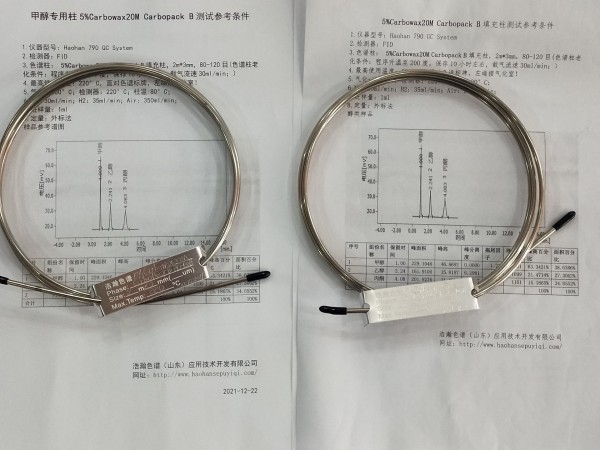

静态顶空气相色谱法测定空气中甲醇含量  测试谱图：


Determination of methanol content in air by static headspace gas chromatography
Determination of methanol content in air by static headspace gas chromatography. Details:

Haohan Chromatography (Shandong) Applied Technology Development Co., Ltd. used static headspace gas chromatography to study the content of methanol in the air. This method avoids the pollution of the chromatographic column and detector, eliminates the tedious steps of distillation, and uses retention time. The methanol content is qualitatively and the peak area is quantified. The methanol content is 0～79.0mg/l, which has a good linear relationship with the chromatographic peak area. The detection limit of the method is 0.01mg/m3, and the relative standard deviation of the measurement results is 0.30%. Compared with the method recommended in the ``Air and Exhaust Gas Monitoring and Analysis Method'' (4th edition), the results show that the method is simple, applicable, reproducible, and sensitive.

Name: Packed column

Chromatographic stationary liquid: 5% polyethylene glycol
Carrier: Graphite carbon black 80-120 mesh

Specification: 2m*3mm, 2m*1/8

Model: 5% Carbowax 20M Carbopack B

Application: HJ T33-1999 Determination of Methanol in Exhaust from Stationary Pollution Sources Gas Chromatography

Determination of methanol content in air by static headspace gas chromatography Test spectrum:
