HH-Deoxygenation tube 透明变色脱氧管

HH-Deoxygenation tube

变色脱氧管

外观尺寸：Φ40*320

接    口：M8*1-Φ3.2

HH-Deoxygenation tube透明变色脱氧管规格Φ40mm*320mm；M8*1 Φ3.2接口，常温下脱氧深度可达0.01ppm，可从外观直接观测脱氧管的使用情况。接口规格如有特殊要求可订制，须注明。

1..入口气体压力≤0.5Mpa， 大流量5L/min。

2..在常温下可直接除去氢、氮、氩、氦、甲烷、一氧化碳、乙烯等气体中的杂质氧，使残余氧量小于0.01ppm。

3..每支脱氧管可脱掉5L纯氧，脱氧后管内脱氧剂变为灰黑色，可观察脱氧管的使用情况。当脱氧剂全部变色后，用户可以进行再生，使得脱氧管可以重复利用。
4.气相色谱仪ECD检测器载气氮气脱氧管。

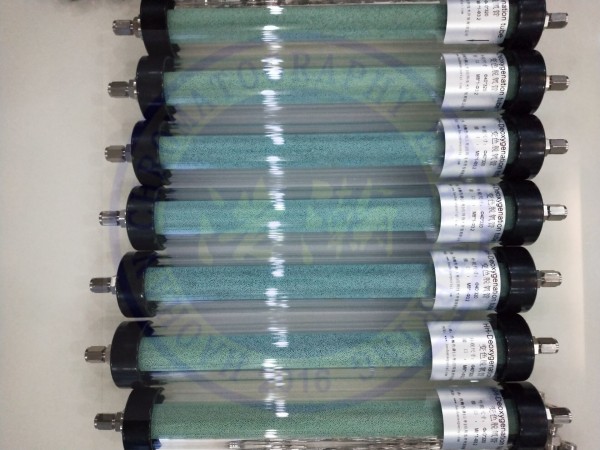

透明变色脱氧管  图片：



Transparent color-changing deoxidizing tube
Transparent color-changing deoxidizing tube Details:

HH-Deoxygenation tube

Color changing deoxygenation tube

Appearance size: Φ40*320

Interface: M8*1-Φ3.2

HH-Deoxygenation tube has a transparent discoloration deoxygenation tube with a specification of Φ40mm*320mm; M8*1 Φ3.2 interface, the deoxygenation depth can reach 0.01ppm at room temperature, and the use of the deoxygenation tube can be directly observed from the appearance. The interface specifications can be customized if there are special requirements, which must be specified.



1. The inlet gas pressure is less than or equal to 0.5Mpa, and the maximum flow is 5L/min.

2. The impurity oxygen in hydrogen, nitrogen, argon, helium, methane, carbon monoxide, ethylene and other gases can be directly removed at room temperature, so that the residual oxygen content is less than 0.01ppm.

3. Each deoxidizer tube can remove 5L of pure oxygen, and the deoxidizer in the tube turns gray-black after deoxidation, and the usage of the deoxidizer tube can be observed. When the deoxidizer is completely discolored, the user can regenerate it, so that the deoxidizer can be reused.
4. Gas chromatograph ECD detector carrier gas nitrogen deoxygenation tube.

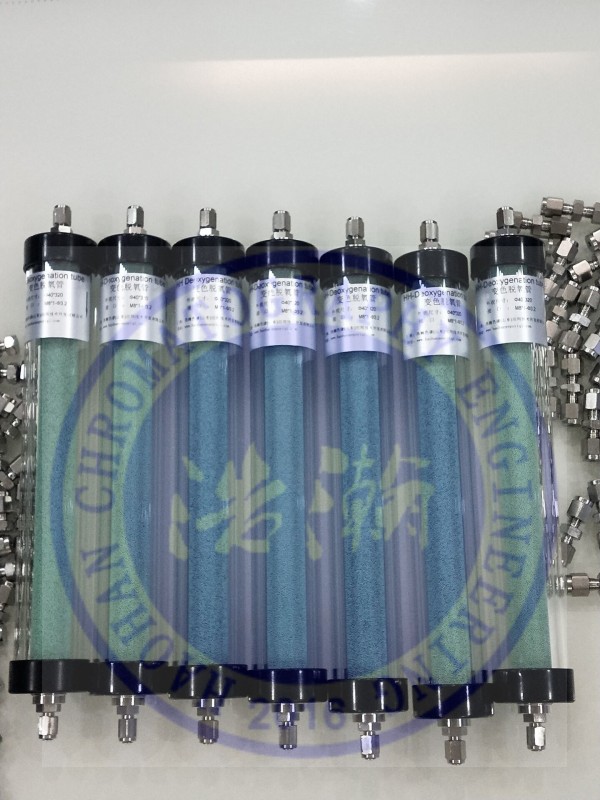

Transparent color changing deoxygenation tube Picture:
