安捷伦7820A 2020版药典二氧化碳玻璃球柱

2020版药典二氧化碳玻璃球柱,，室内空气，液化气，甲缩醛，甲醇，二甲醚，增塑剂，塑化剂，过氧化物，三甲胺，二甲醚，乙酸乙酯，医疗器械，环氧乙烷，氨水，氨气，医疗器械，环氧乙烷

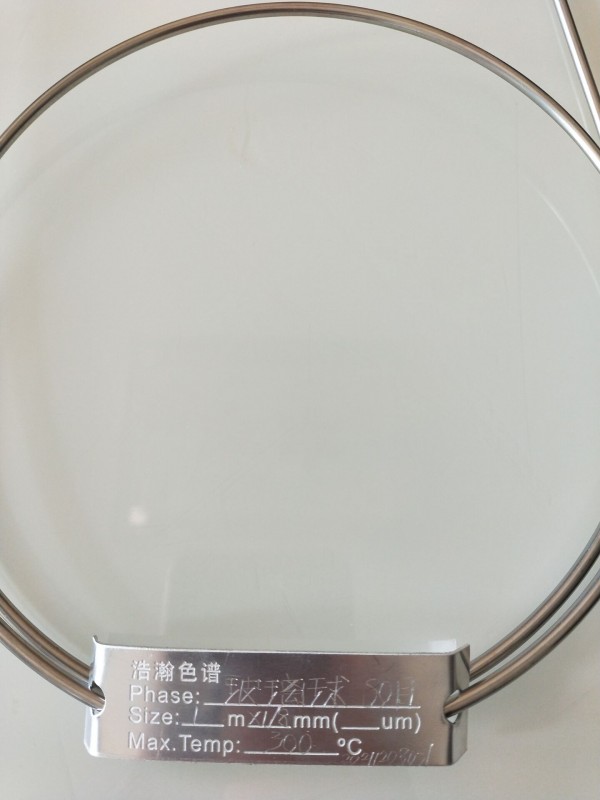

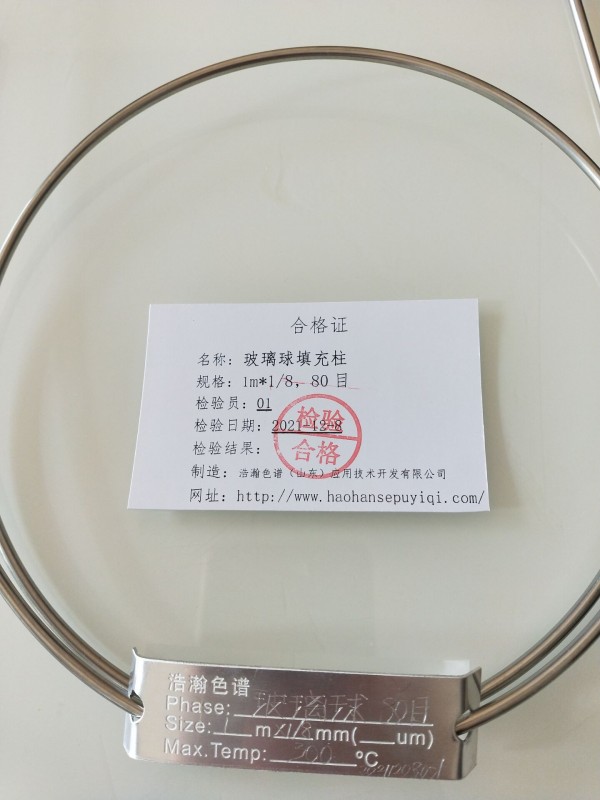

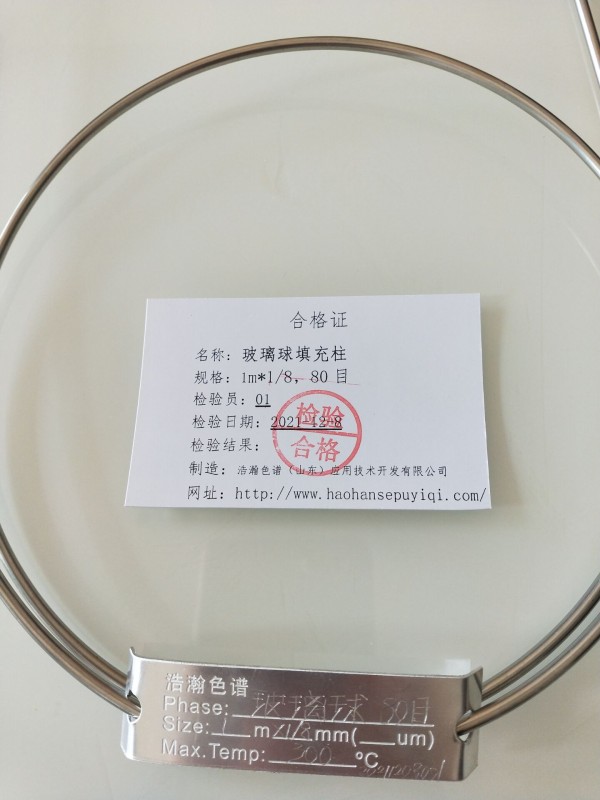

2020版药典二氧化碳玻璃球柱
2020版药典二氧化碳玻璃球柱 详细信息：

碳氢化合物照气相色谱法(通则0521)测定供试品气体取本品,即得对照品气体取甲烷含量为0.0020%的气体(以氮气为稀释剂)。色谱条件用玻璃球为填料的色谱柱(4mm×0.8m,80目);柱温为110℃;进样口温度为110℃;检测器为火焰离子化检测器,温度为120℃测定法精密量取供试品气体与对照品气体,分别注入气相色谱仪,在净化温度为360℃时测得的峰面积为相应空白值;精密量取供试品气体与对照品气体,分别注入气相色谱仪,测定峰面积,减去相应空白值后的峰面积为校正峰面积限度按外标法以校正峰面积计算,含碳氢化合物(以甲烷计)不得过0.0020%。

以上是2020年药典二氧化碳中对碳氢化合物的指标要求及气相色谱测定，浩瀚色谱（山东）应用技术开发有限公司，采用新技术，研发2020年药典二氧化碳分析的玻璃球色谱柱，在安捷伦7820A气相色谱仪上测试，效果良好，受到用户的好评。

浩瀚色谱，提供详细的分析方案，提供净化装置，标气

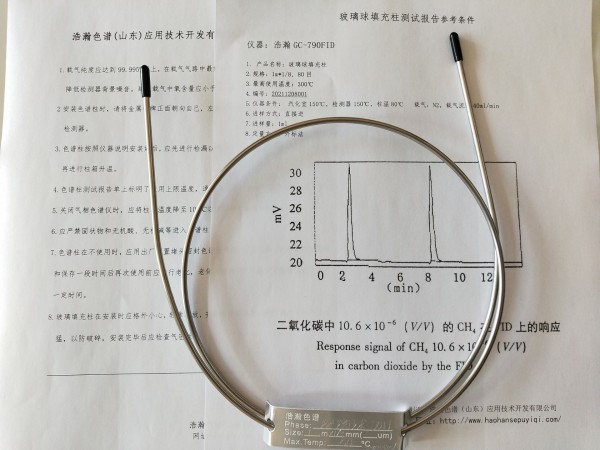

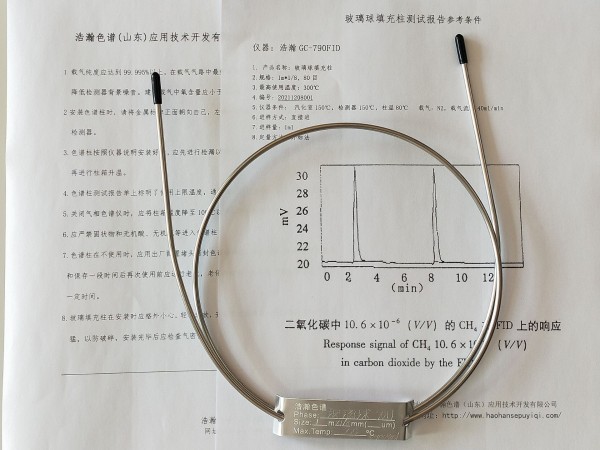

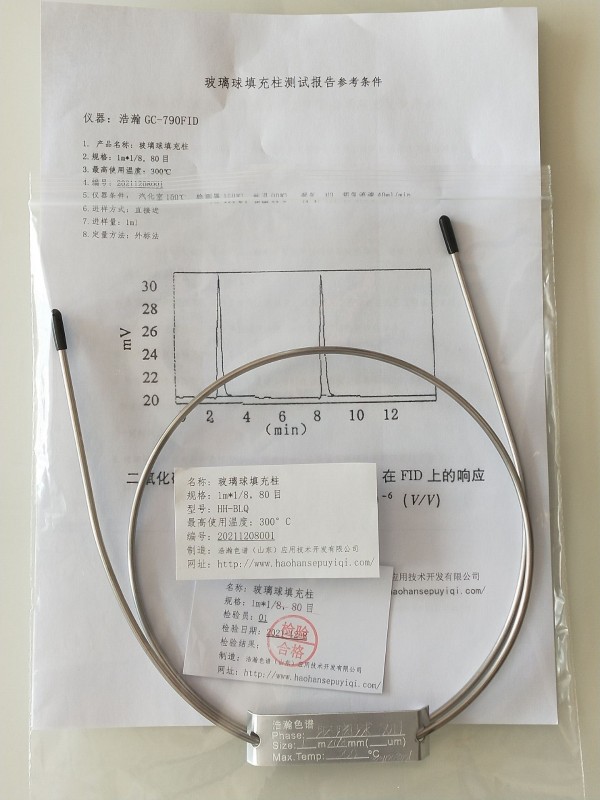

2020版药典二氧化碳玻璃球柱  测试谱图：



2020 Pharmacopoeia Carbon Dioxide Glass Spherical Column
2020 Pharmacopoeia Carbon Dioxide Glass Spherical Column Details:

Hydrocarbons are measured by gas chromatography (general rule 0521) and the gas of the test product is taken from this product, that is, the gas with a methane content of 0.0020% is obtained as the reference gas (with nitrogen as the diluent). Chromatographic conditions: Use a chromatographic column (4mm × 0.8m, 80 mesh) with glass balls as filler; the column temperature is 110°C; the inlet temperature is 110°C; the detector is a flame ionization detector, and the temperature is 120°C. Measure the test gas and the reference gas, inject them into the gas chromatograph respectively, and the peak area measured when the purification temperature is 360 °C is the corresponding blank value; accurately measure the test gas and the reference gas, and inject them into the gas chromatograph respectively. Instrument, measure the peak area, and the peak area after subtracting the corresponding blank value is the calibration peak area limit. Calculate the calibration peak area according to the external standard method, and the hydrocarbon content (in terms of methane) shall not exceed 0.0020%.

The above are the index requirements and gas chromatographic determination of hydrocarbons in Pharmacopoeia carbon dioxide in 2020. Haohan Chromatography (Shandong) Application Technology Development Co., Ltd. adopts new technology to develop glass sphere chromatography columns for carbon dioxide analysis in Pharmacopoeia in 2020. Tested on the chromatograph, the effect is good, and it is well received by users.

Huohan Chromatography, provide detailed analysis plan, provide purification device, standard gas


2020 Pharmacopoeia Carbon Dioxide Glass Spherical Column Test Spectrum:
