HH-THC06钝化总烃柱 HJ 38-2017 固定污染源废气 总烃、甲烷和非甲烷总烃的测定 气相色谱法

HJ 38-2017 固定污染源废气 总烃、甲烷和非甲烷总烃的测定 气相色谱法，芝麻香白酒，3-甲硫基丙醇，室内空气，焦炉煤气，炼厂气，天然气，变压器油，多氯联苯，植物油，增塑剂

HJ 38-2017 固定污染源废气 总烃、甲烷和非甲烷总烃的测定 气相色谱法
HJ 38-2017 固定污染源废气 总烃、甲烷和非甲烷总烃的测定 气相色谱法  详细信息：

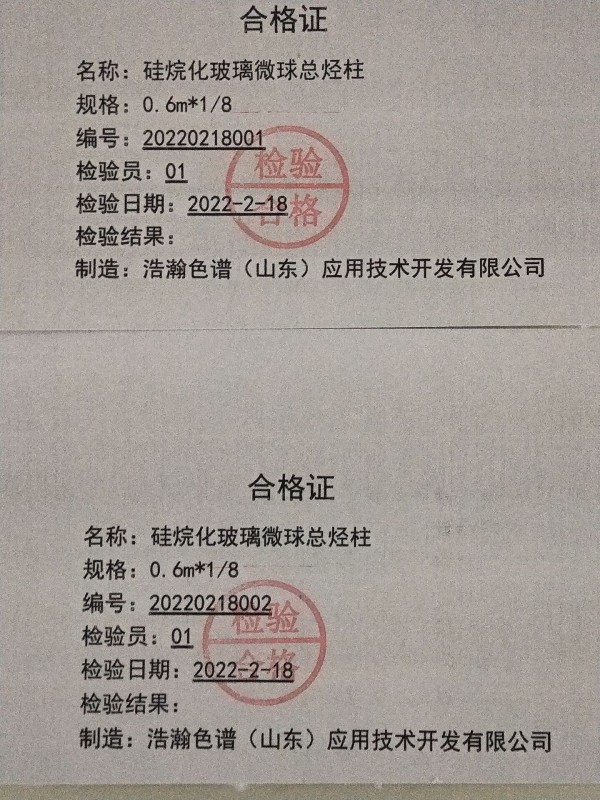

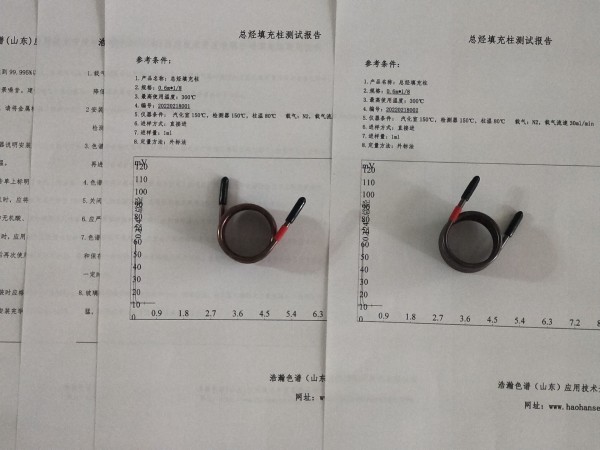

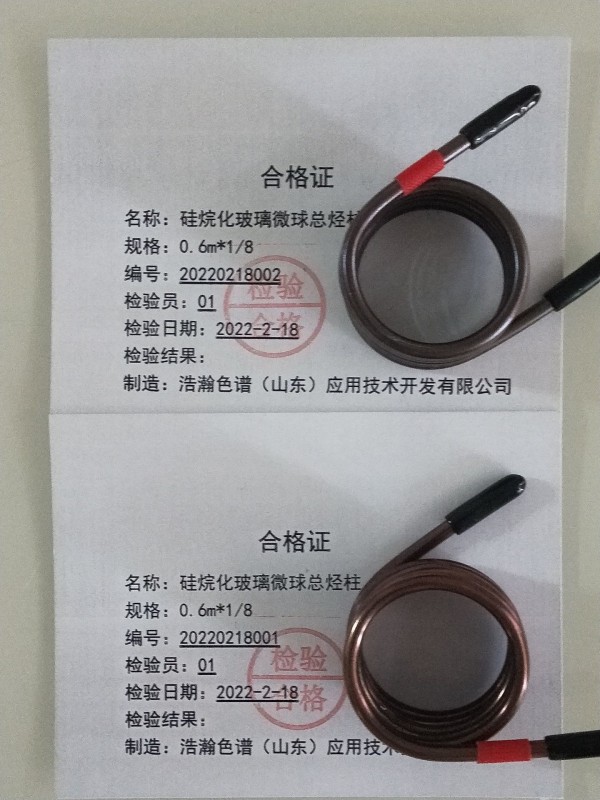

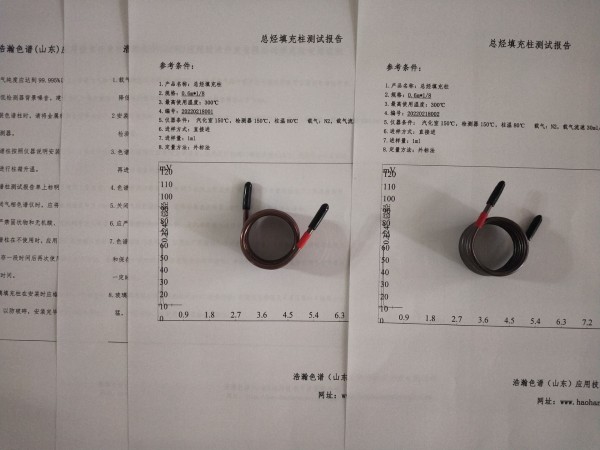

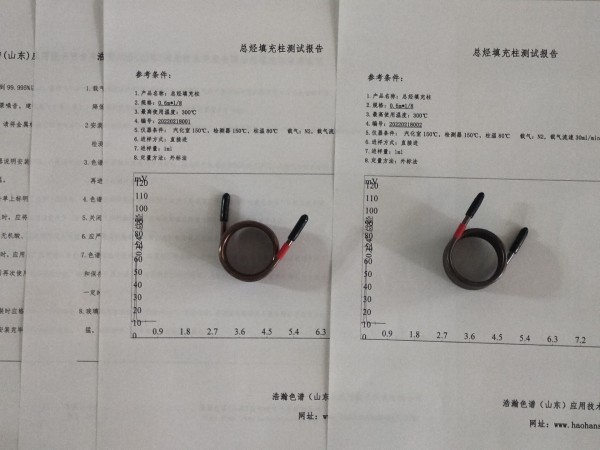

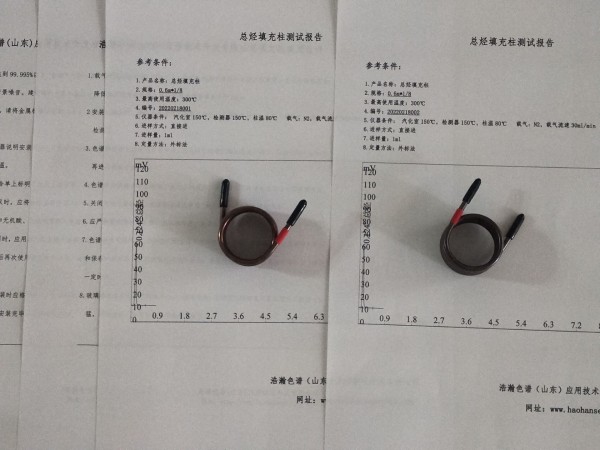

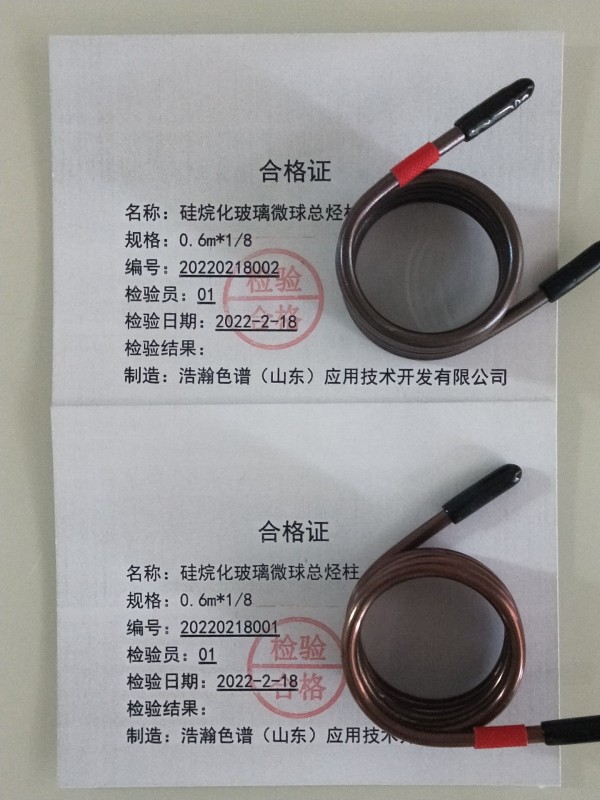

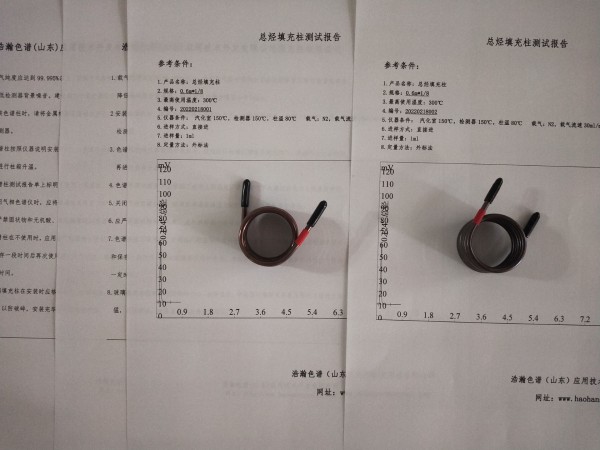

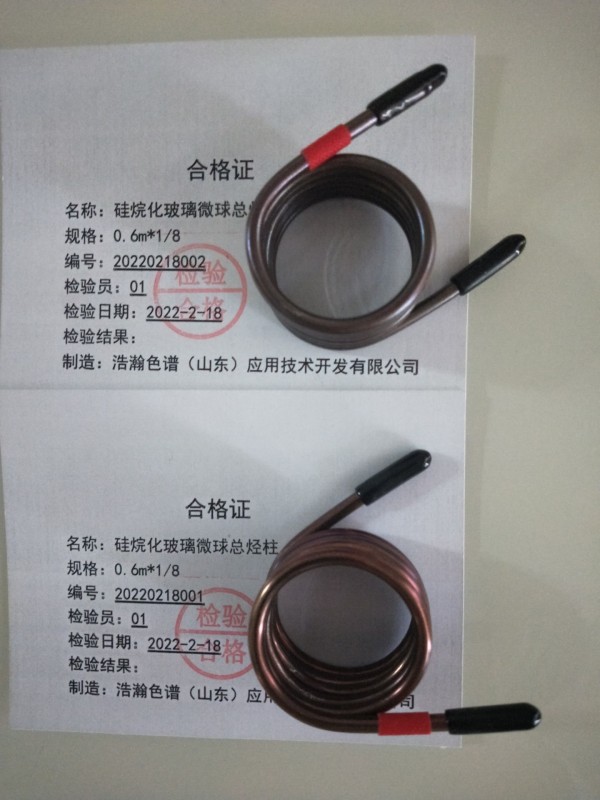

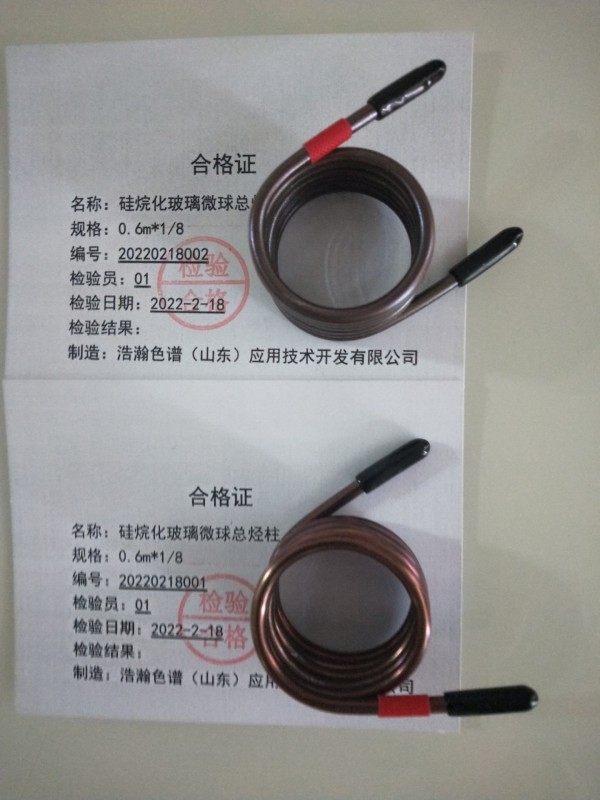

名称：硅烷化总烃柱

材质：钝化不锈钢管

规格：0.6m*1/8

型号：HH-THC06

应用：HJ 38-2017 固定污染源废气 总烃、甲烷和非甲烷总烃的测定 气相色谱法

峰型对称，不分叉，柱效高，结果植物。


非甲烷总烃(NMHC)通常是指除甲烷以外的所有可挥发的碳氢化合物(其中主要是C2-C8)的总称.一般环境空气中非甲烷总烃的含量不高,但随着近年工业的发展,大量废气排入环境空气中.大气中的非甲烷总烃超过一定浓度,除直接对人体健康有害外,在一定条件下经日光照射还能产生光化学烟雾,对环境和人类造成危害.


浩瀚色谱（山东）应用技术开发有限公司用玻璃注射器(气袋)采集气体样品,以双柱单氢火焰离子化检测器的气相色谱仪直接进行测定。进样1.0 mL样品分别进入汽化室的总烃柱和甲烷柱中,由于这两个柱子填充材料和长短差异,总烃先在FID上产生响应,然后甲烷在FID上产生响应。总烃的浓度扣除甲烷浓度和除烃空气氧的浓度值,即可得到非甲烷总烃(NMHC)的浓度,可以实现单次进样,同时完成总烃、甲烷、非甲烷总烃浓度的测定。文章研究1.37～22.3 mg/m3浓度甲烷标准气,得出甲烷标准曲线方程为Y=715X+829,r=0.9990,相对标准偏差为0.26%～1.8%,总烃标准曲线方程Y=695X+724,相对标准偏差为0.35%～1.4%,除烃空气(O2-N2,20.8%)相对标准偏差为0.75%。该法用于环境空气和固定污染源有组织排放中NMHC含量分析,操作简单,实验结果满意。



HJ 38-2017 Waste gas from stationary pollution sources-Determination of total hydrocarbons, methane and non-methane total hydrocarbons-Gas chromatography
HJ 38-2017 Waste gas from stationary pollution sources-Determination of total hydrocarbons, methane and non-methane total hydrocarbons-Gas chromatography Details:

Name: Silanized Total Hydrocarbon Column

Material: Passivated stainless steel tube

Specifications: 0.6m*1/8

Model: HH-THC06

Application: HJ 38-2017 Waste gas from stationary pollution sources-Determination of total hydrocarbons, methane and non-methane total hydrocarbons-Gas chromatography




Symmetrical peak shape, no bifurcation, high column efficiency, and reliable results.


Non-methane total hydrocarbons (NMHC) usually refer to the general term for all volatile hydrocarbons (mainly C2-C8) except methane. Generally, the content of non-methane total hydrocarbons in ambient air is not high, but with the recent industrialization With the development of China, a large amount of waste gas is discharged into the ambient air. The non-methane total hydrocarbons in the atmosphere exceed a certain concentration, which is not only directly harmful to human health, but also can produce photochemical smog under certain conditions by sunlight exposure, causing harm to the environment and humans.


Haohan Chromatography (Shandong) Application Technology Development Co., Ltd. used a glass syringe (air bag) to collect gas samples, and directly measured them with a gas chromatograph with a dual-column single-hydrogen flame ionization detector. 1.0 mL of sample was injected into the total hydrocarbon column and the methane column of the vaporization chamber, respectively. Due to the difference in the packing material and length of the two columns, the total hydrocarbon first responded on the FID, and then the methane responded on the FID. The concentration of total hydrocarbons can be obtained by deducting the concentration of methane and the concentration of oxygen in the dehydrocarbon air to obtain the concentration of non-methane total hydrocarbons (NMHC). . In this paper, the standard gas of methane concentration of 1.37～22.3 mg/m3 was studied, and the methane standard curve equation was obtained as Y=715X+829, r=0.9990, the relative standard deviation was 0.26%～1.8%, and the total hydrocarbon standard curve equation was Y=695X+724 , the relative standard deviation is 0.35%～1.4%, and the relative standard deviation of hydrocarbon removal air (O2-N2, 20.8%) is 0.75%. This method is used for the analysis of NMHC content in the ambient air and the organic emission of fixed pollution sources, and the operation is simple and the experimental results are satisfactory.
