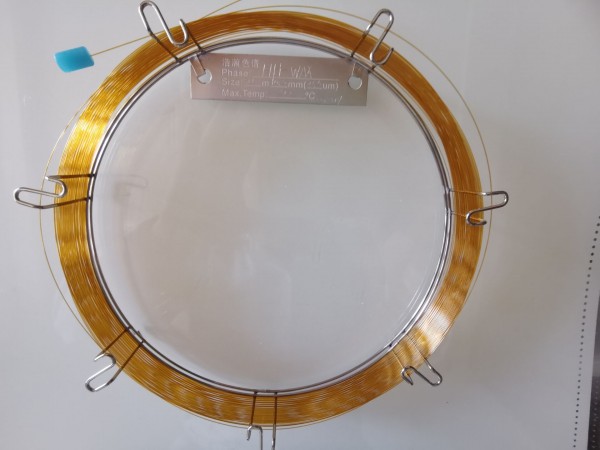

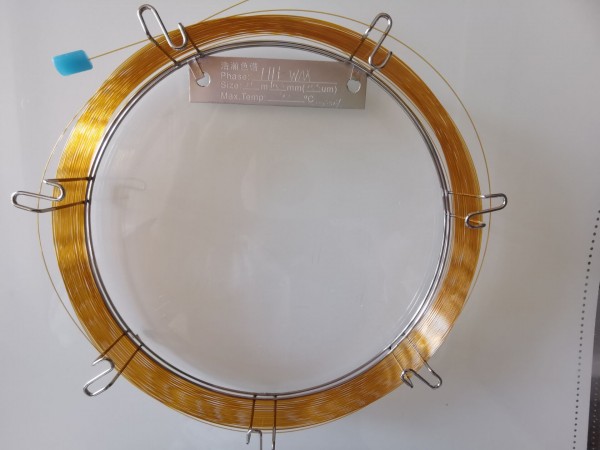

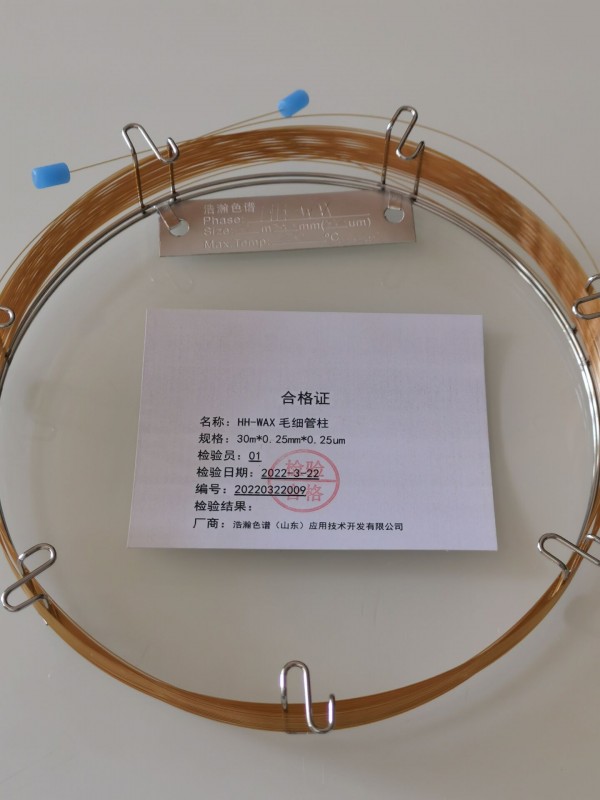

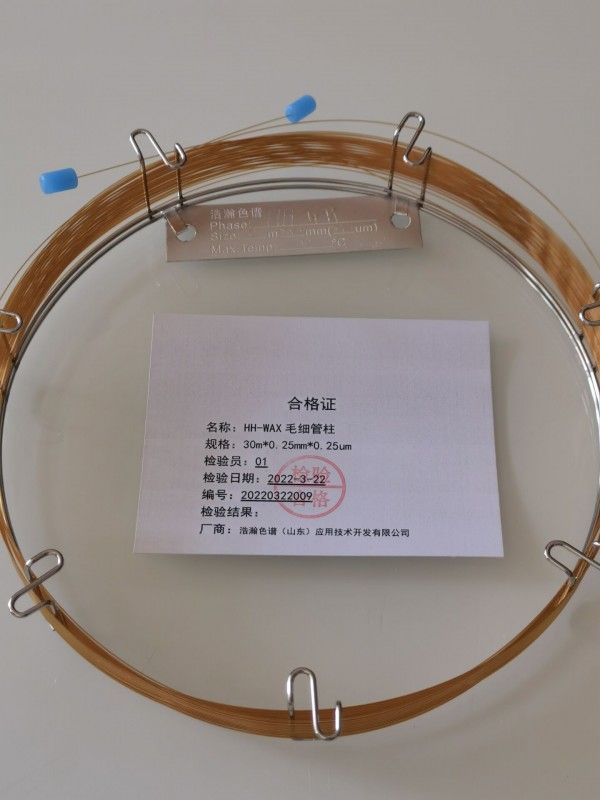

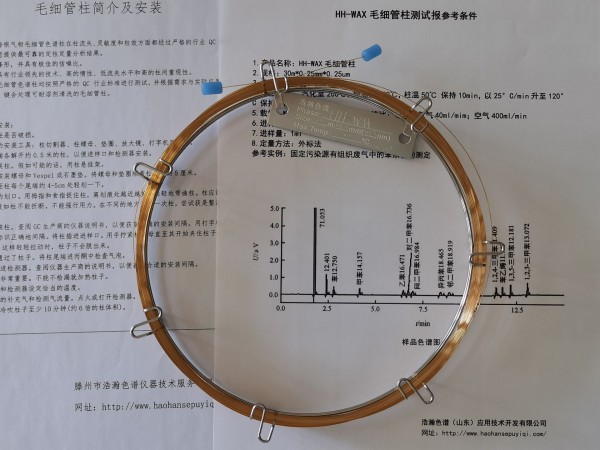

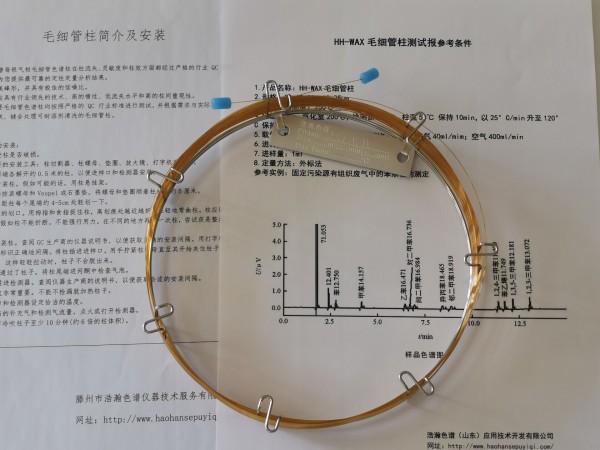

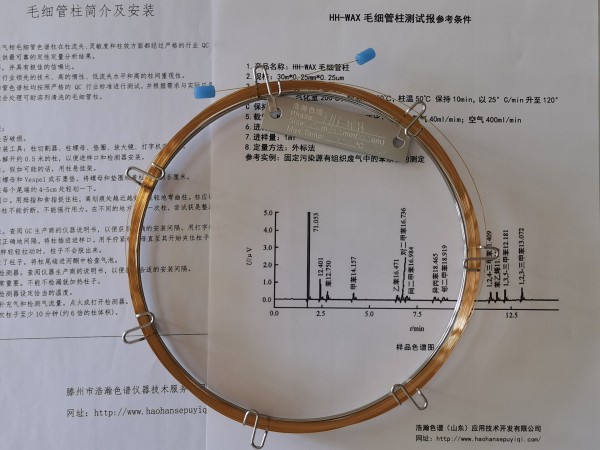

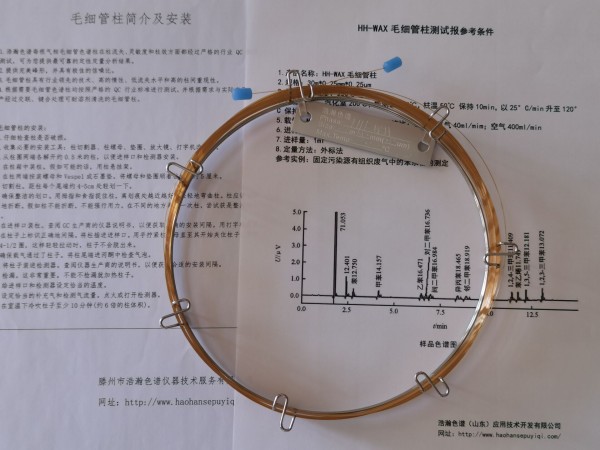

HH-WAX 工作场所空气中环氧氯丙烷测定毛细管柱

名称：毛细管柱

固定液：聚乙二醇-20M

规格：30m*0.25mm*0.25um

型号：HH-WAX
应用：  工作场所空气中环氧氯丙烷测定方法

浩瀚色谱（山东）应用技术开发有限公司建立工作场所空气中环氧氯丙烷测定方法。方法按照《工作场所空气中毒物检测方法的研制规范》要求进行实验室检测,研究了色谱条件的选择、采样方法的选择、采样效率、穿透容量、解吸效率实验,样品的稳定性实验、方法的线性范围及检出限、方法的精密度等指标。结果采用HH-WAX弹性毛细管石英柱能将环氧氯丙烷和共存物分离。环氧氯丙烷浓度在0~118.0 mg/L呈良好线性关系,相关系数为0.99994,方法的低检出浓度为0.17 mg/m3(采样3 L)。方法的相对标准偏差(RSD)为2.2%~6.1%。平均解吸效率92.8%。样品在4℃冰箱中可保存5 d。结论方法的各种指标符合《工作场所空气中毒物检测方法的研制规范》要求,适用于工作场所空气中环氧氯丙烷的检测。

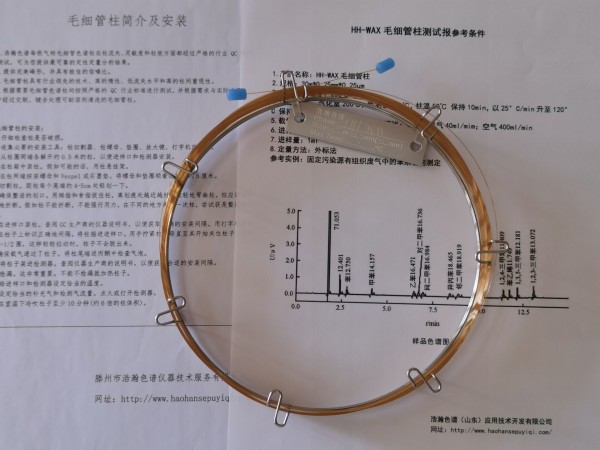

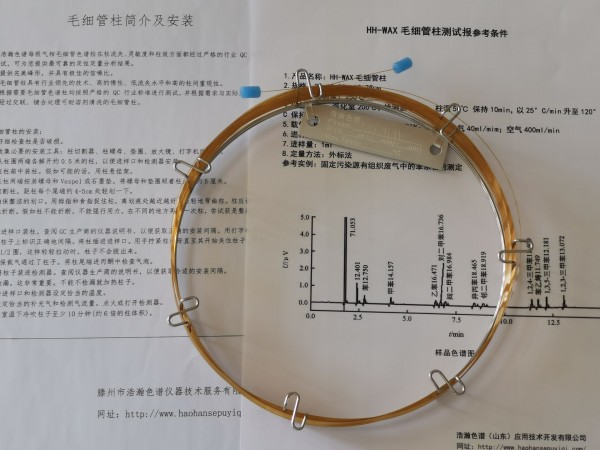

工作场所空气中环氧氯丙烷测定毛细管柱  测试谱图：



Capillary column for the determination of epichlorohydrin in workplace air
Capillary column for the determination of epichlorohydrin in workplace air Details:

Name: capillary column

Fixative: polyethylene glycol-20M

Specifications: 30m*0.25mm*0.25um

Model: HH-WAX
Application: Method for the determination of epichlorohydrin in workplace air

Haohan Chromatography (Shandong) Application Technology Development Co., Ltd. established a method for the determination of epichlorohydrin in workplace air. Methods Laboratory tests were carried out in accordance with the requirements of the "Specifications for the development of air poisoning detection methods in the workplace", and the selection of chromatographic conditions, the selection of sampling methods, the experiments of sampling efficiency, penetration capacity, and desorption efficiency, and the stability experiments and methods of samples were studied. The linear range and detection limit, the precision of the method and other indicators. Results Epichlorohydrin and coexisting substances could be separated by HH-WAX elastic capillary quartz column. The epichlorohydrin concentration showed a good linear relationship between 0 and 118.0 mg/L, and the correlation coefficient was 0.99994. The minimum detection concentration of the method was 0.17 mg/m3 (3 L of sampling). The relative standard deviation (RSD) of the methods ranged from 2.2% to 6.1%. The average desorption efficiency was 92.8%. The samples can be stored in a refrigerator at 4°C for 5 days. Conclusion Various indicators of the method meet the requirements of "Development Specifications for Detection Methods of Toxicants in Workplace Air", and are suitable for the detection of epichlorohydrin in workplace air.



Capillary column test spectrum for the determination of epichlorohydrin in workplace air:
