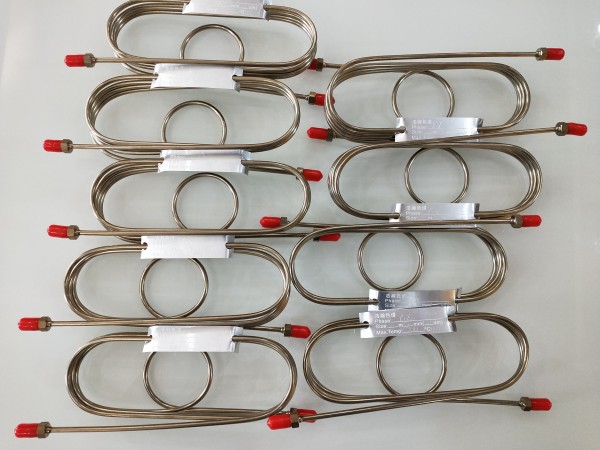

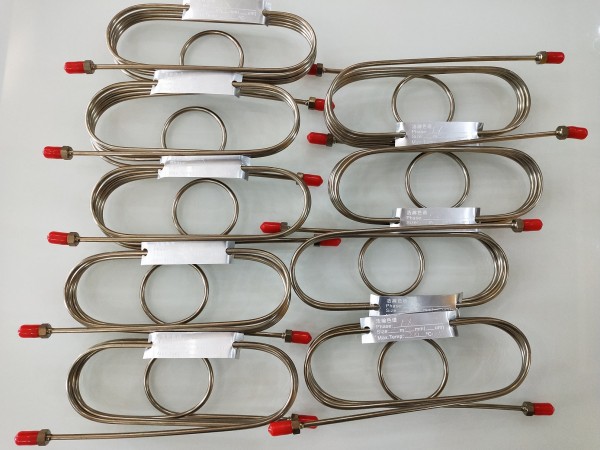

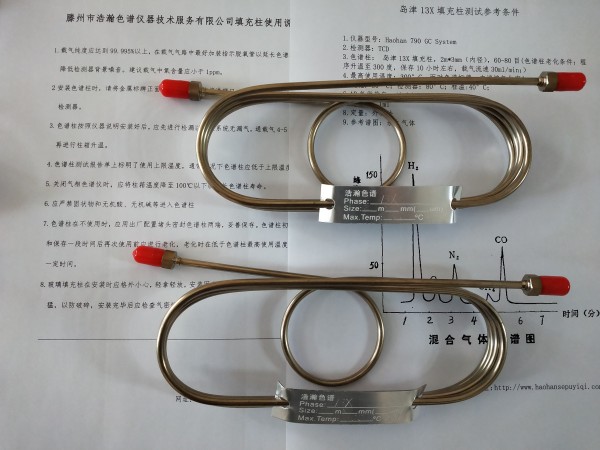

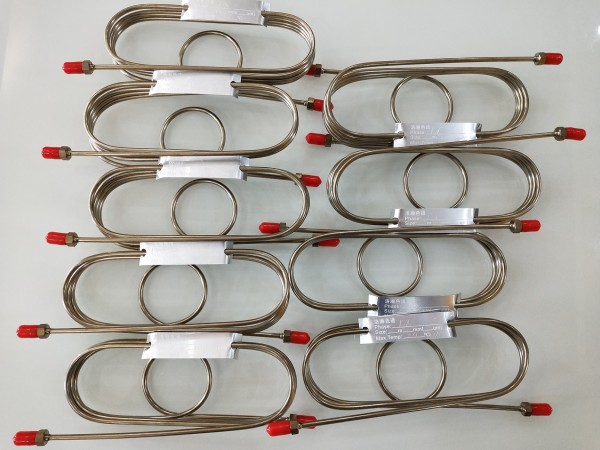

2m*3mm 13x分子筛填充柱测定天然气组分

名称：填充柱

固定相：分子筛

规格：2m*3mm

粒度；60-80目（250um-180um）

型号：13X

应用：GB/T 13610-2003天然气的组成分析 气相色谱法，O2,N2,CH4的分离测定

天然气因清洁低碳、使用和储量丰富等优点而被广泛应用于当今社会,国际标准《ISO 13686天然气质量指标》中对天然气的成分作出了明确规定,因此天然气组分的定量分析变得十分重要。

天然气样气中甲烷、乙烷、丙烷、二氧化碳、氮气、氢气、一氧化碳和C4+的分析标准差分别为 0.072%,0.002%,0.000%,0.013%,0.018%,0.02%,0.014%,0.037%;在准确性方面,与气相色谱方法分析值的对比,在线分析系统对甲烷、乙烷、丙烷、二氧化碳、氮气、氢气、一氧化碳和C4+这8种组分的标准偏差分别为0.234%,0.141%,0.176%,0.068%,0.056%,0.01 7%,0.015%,0.35 8%,结果说明系统有较好的准确性。

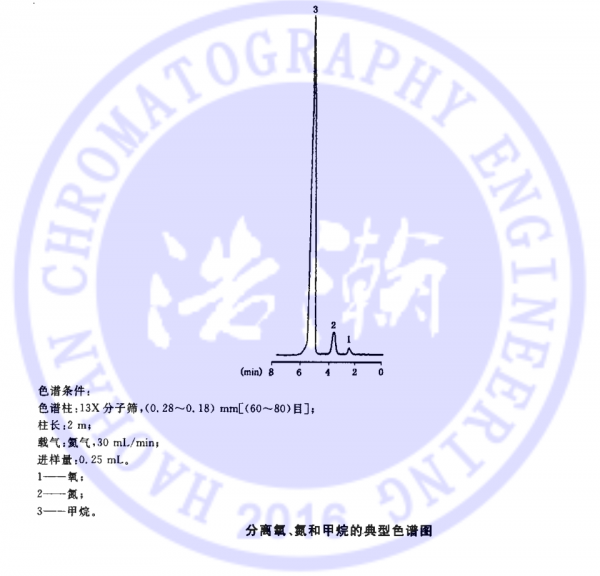

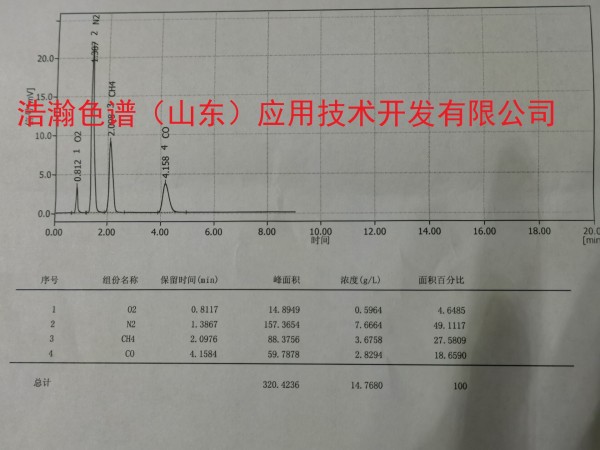

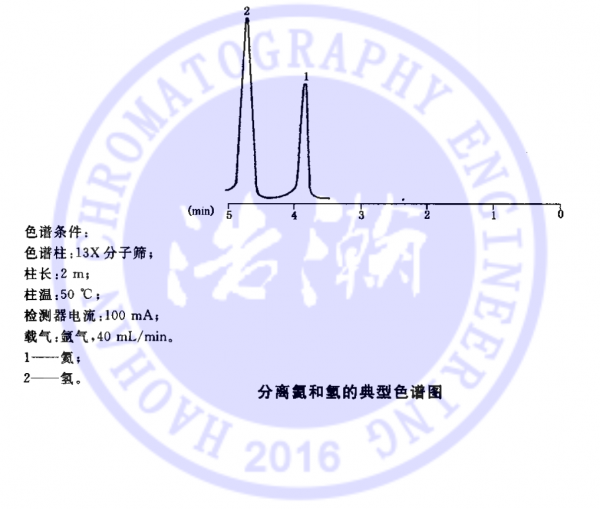

13x分子筛填充柱测定天然气组分  测试谱图：


Determination of natural gas components by 13x molecular sieve packed column
13x molecular sieve packed column for the determination of natural gas components Details:

Name: Packed Column

Stationary Phase: Molecular Sieve

Specifications: 2m*3mm

Particle size; 60-80 mesh (250um-180um)

Model: 13X

Application: GB/T 13610-2003 Composition Analysis of Natural Gas-Gas Chromatography, Separation and Determination of O2, N2, CH4

Natural gas is widely used in today's society due to its advantages of clean, low-carbon, efficient use and abundant reserves. The international standard "ISO 13686 Natural Gas Quality Index" clearly stipulates the composition of natural gas, so the quantitative analysis of natural gas composition has become very important. important.

The analytical standard deviations of methane, ethane, propane, carbon dioxide, nitrogen, hydrogen, carbon monoxide and C4+ in natural gas samples were 0.072%, 0.002%, 0.000%, 0.013%, 0.018%, 0.02%, 0.014%, and 0.037%, respectively; In terms of accuracy, compared with the analytical values of the gas chromatography method, the standard deviations of the online analysis system for the eight components of methane, ethane, propane, carbon dioxide, nitrogen, hydrogen, carbon monoxide and C4+ were 0.234%, 0.141%, respectively. The results show that the system has good accuracy.

Determination of natural gas components by 13x molecular sieve packed column Test spectrum:
