60-80目 5Å填充柱3M*4MM

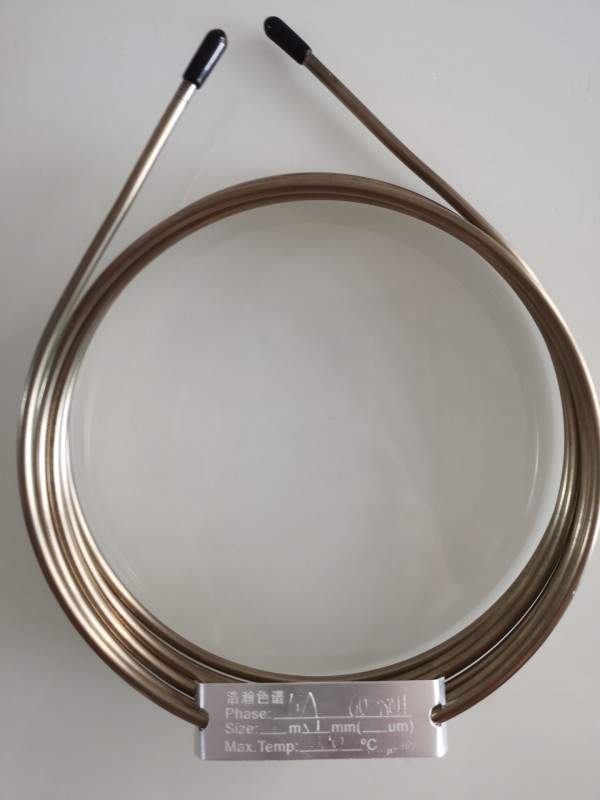

名称：不锈钢填充柱

固定相：分子筛

规格：3m*3mm（内径）*4mm（外径），60-80目

型号：MoleSieve 5Å

又名钙A分子筛。人工合成的结晶铝硅酸盐沸石。白色立方晶体,单位晶胞组成为Ca6[(AlO2)12(SiO2)12]·30H2O。无毒、无味、无腐蚀性,不溶于水和有机溶剂。能溶于强酸和强碱溶液。 具有约5埃()的微孔结构,脱水后有强烈的吸附能力,能吸附直径比5埃()。

本标准规定了5A 分子筛的技术要求、试验方法、检验规则和包装、标志、贮存和运输。
本标准适用于含粘结剂5A 颗粒分子筛及5A 分子筛原粉,该产品主要用途为化工、石油、天然气及其他工业气体的干燥和精制。

应用：气体测定H2,O2,N2,CO,CH4的分离

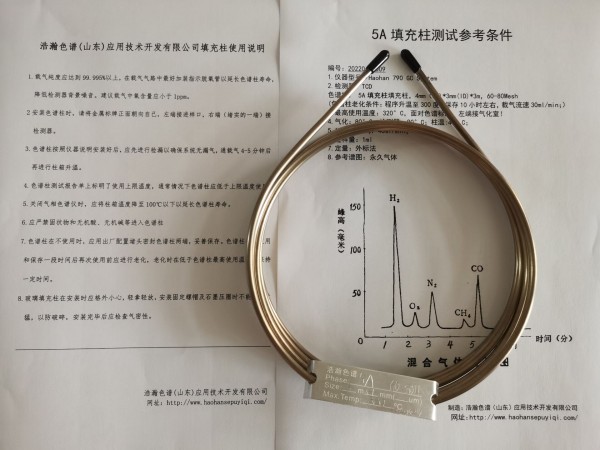

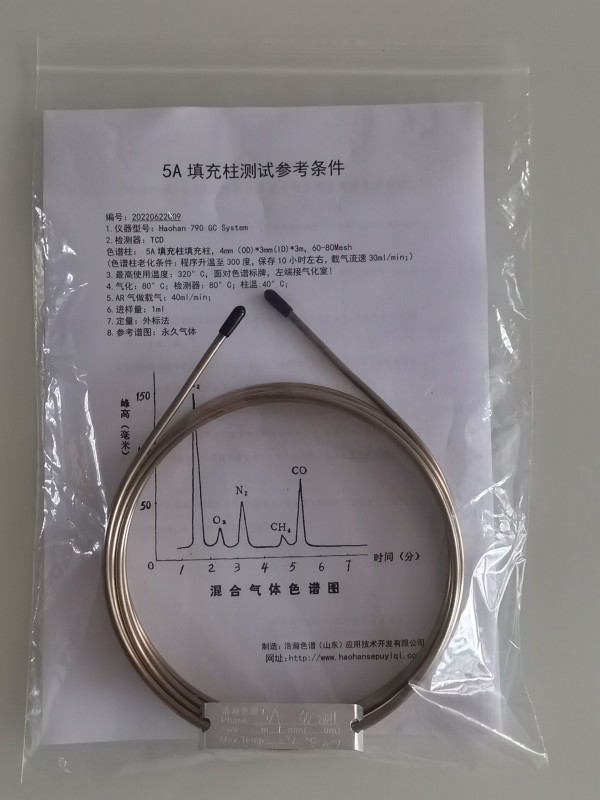

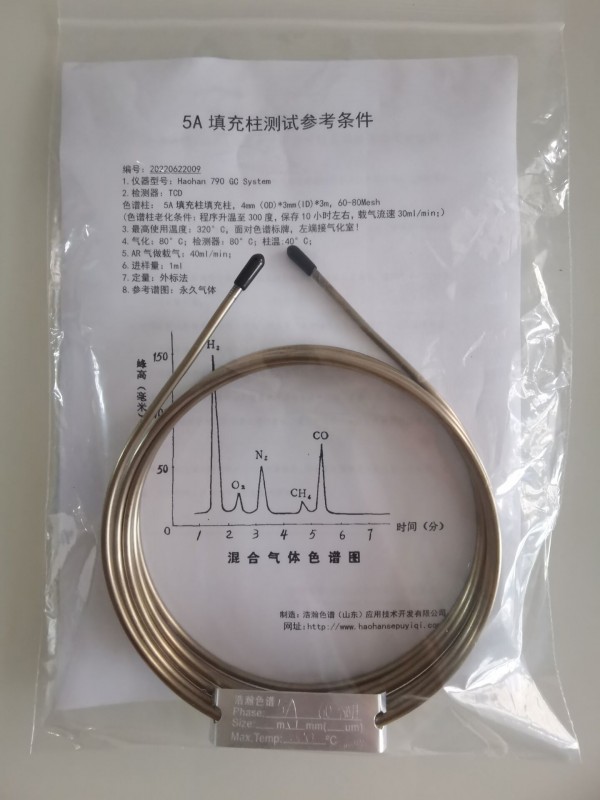

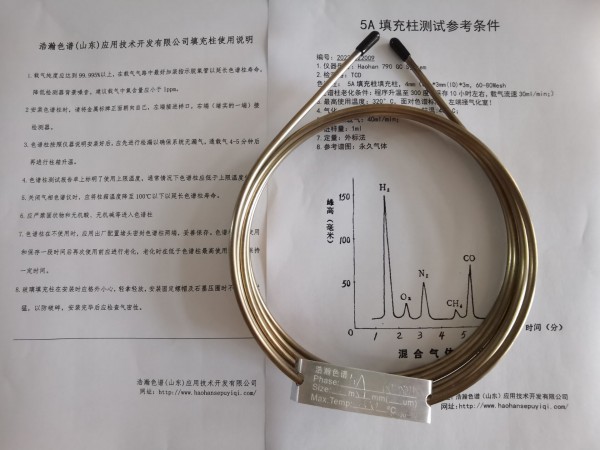

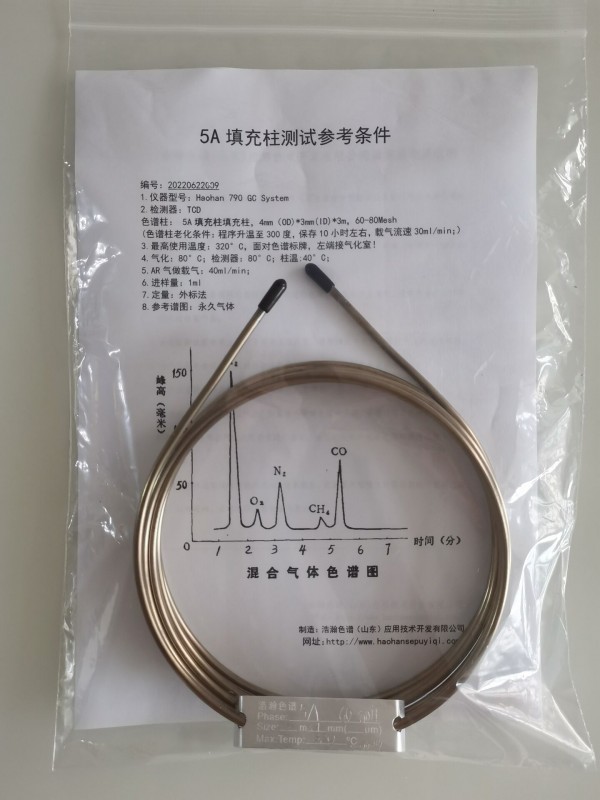

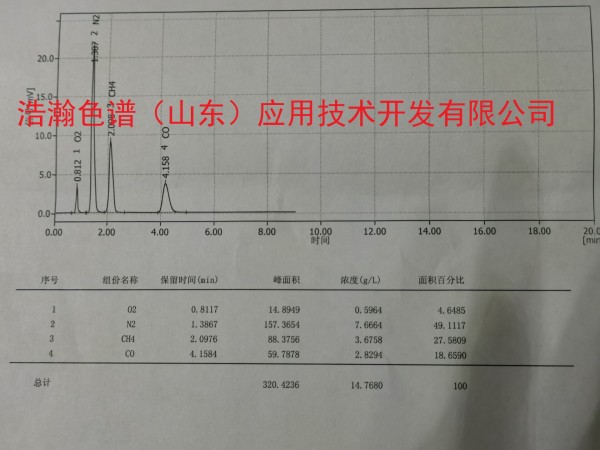

5Å填充柱3M*4MM  测试谱图：


5Å packed column 3M*4MM
5Å Packed Column 3M*4MM Details:

Name: Stainless Steel Packed Column

Stationary Phase: Molecular Sieve

Specifications: 3m*3mm (inner diameter)*4mm (outer diameter), 60-80 mesh

Model: MoleSieve 5Å

Also known as calcium A molecular sieve. Synthetic crystalline aluminosilicate zeolite. White cubic crystal, the unit cell composition is Ca6[(AlO2)12(SiO2)12]·30H2O. Non-toxic, odorless, non-corrosive, insoluble in water and organic solvents. Soluble in strong acid and alkali solutions. It has a microporous structure of about 5 angstroms (), and has a strong adsorption capacity after dehydration, and the adsorption diameter is larger than 5 angstroms ().

This standard specifies the technical requirements, test methods, inspection rules, packaging, marking, storage and transportation of 5A molecular sieves.
This standard is applicable to 5A particle molecular sieve containing binder and 5A molecular sieve raw powder, which is mainly used for drying and refining of chemical, petroleum, natural gas and other industrial gases.

Application: Permanent Gas Determination Separation of H2, O2, N2, CO, CH4

5Å packed column 3M*4MM test spectrum:
