3m*3mm 尿素原料气有效组分测定 5Å填充柱

名称：不锈钢填充柱

固定相：分子筛

规格：3m*3mm（内径）*4mm（外径），60-80目

型号：MoleSieve 5Å

浩瀚色谱（山东）应用技术开发有限公司将G c—型气相色谱仪进行改装后,利用柱切换技术,分析尿素原料气中的H2、O2、N2、CO、CH4,使分析周期降为6m in,从而提高了分析结果的重现性和工作效率。

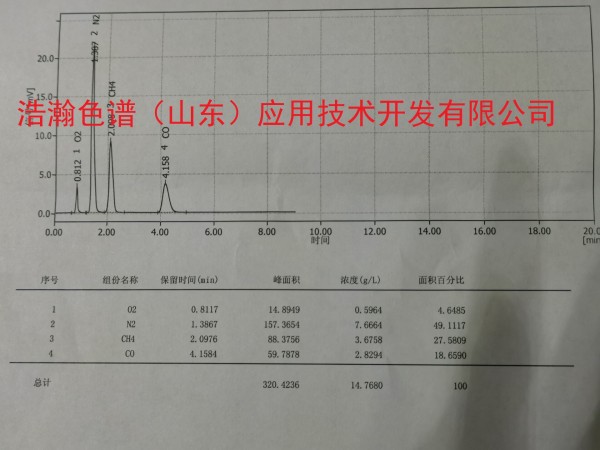

尿素原料气有效组分测定 5Å填充柱  测试谱图：


Determination of effective components in urea feed gas 5Å packed column
Determination of effective components in urea feed gas 5Å packed column Details:

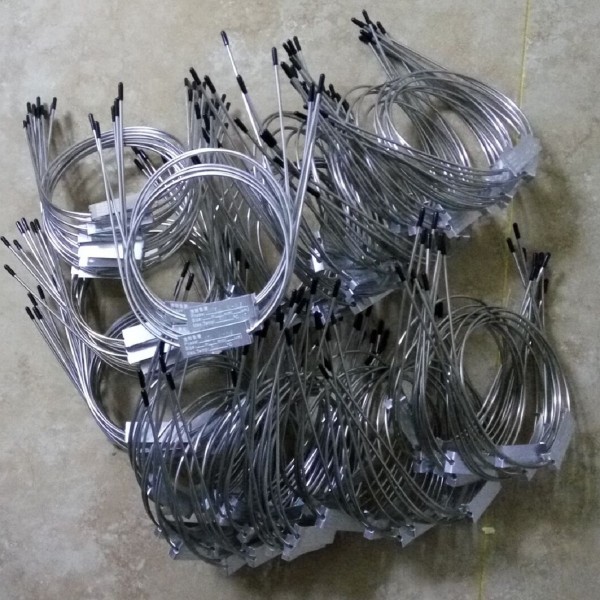

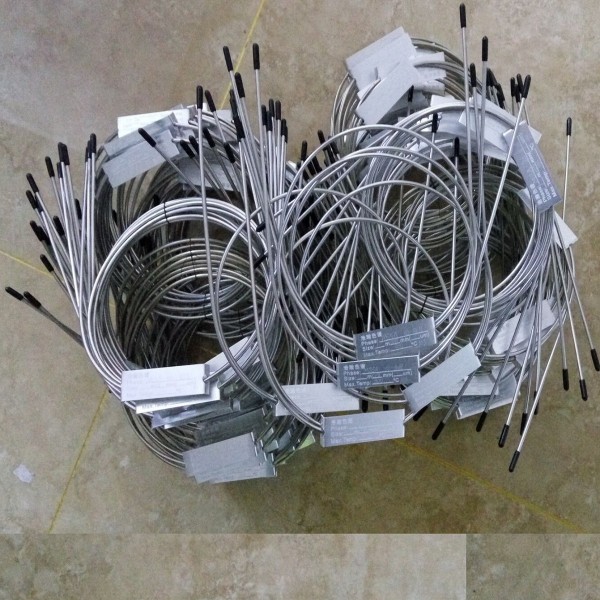

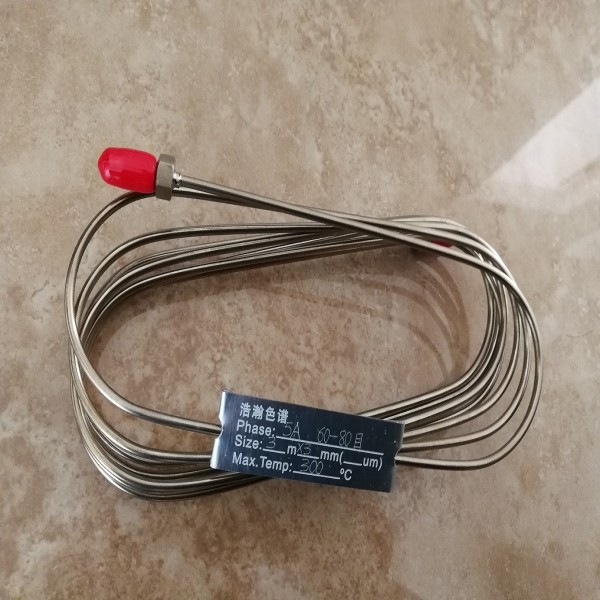

Name: Stainless Steel Packed Column

Stationary Phase: Molecular Sieve

Specifications: 3m*3mm (inner diameter)*4mm (outer diameter), 60-80 mesh

Model: MoleSieve 5Å

Haohan Chromatography (Shandong) Application Technology Development Co., Ltd. modified the G c- gas chromatograph and used column switching technology to analyze H2, O2, N2, CO, and CH4 in the urea feed gas, reducing the analysis period to 6m in, thereby improving the reproducibility and work efficiency of the analysis results.

Determination of effective components in urea feed gas 5Å packed column Test spectrum:
