GDX-105填充柱 工作场所空气中氯乙烯的气相色谱测定

工作场所空气中氯乙烯的气相色谱测定，芝麻香白酒，3-甲硫基丙醇，室内空气，乙酸乙酯，医疗器械，环氧乙烷，增塑剂，塑化剂，顶空进样器，热解吸仪，裂解进样器，氨水，氨气，甲醇

工作场所空气中氯乙烯的气相色谱测定
工作场所空气中氯乙烯的气相色谱测定 详细信息：

浩瀚色谱（山东）应用技术开发有限公司建立工作场所空气中氯乙烯的溶剂解吸气相色谱测定方法。[方法]活性碳管采样,二硫化碳解吸,GDX-105柱分离,氢焰离子化检测器检测。[结果]用活性碳管以0.2 L/min的速度采样10 min,采样效率90％以上;方法的重现性好,不同浓度的相对标准偏差1.98％～5.83％;平均解吸效率93.7％,测定范围7.5～120.0 mg/m3;低检出浓度为1.5 mg/m3(采样2 L);穿透容量为0.47 mg(100 mg活性炭)。[结论]该法各项指标均达到《车间空气监测检验方法》研究规范的要求,适用于工作场所空气中氯乙烯的现场监测。

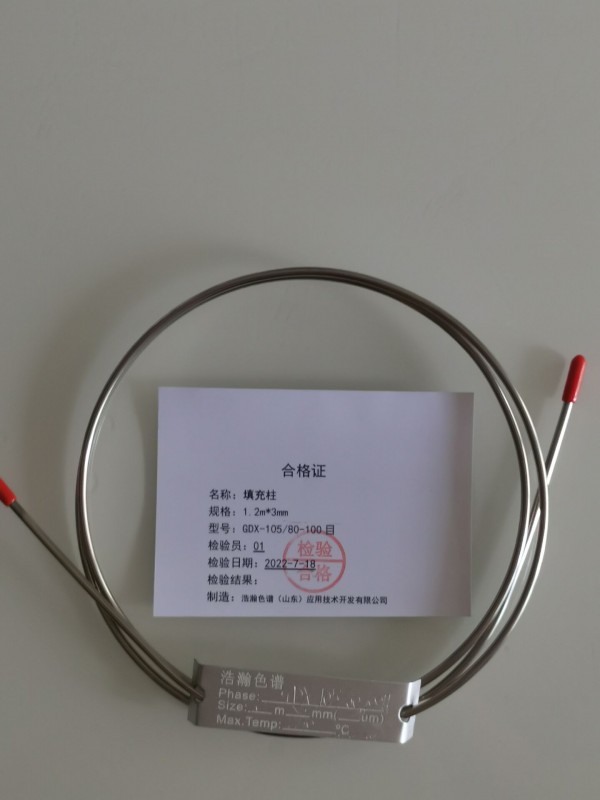

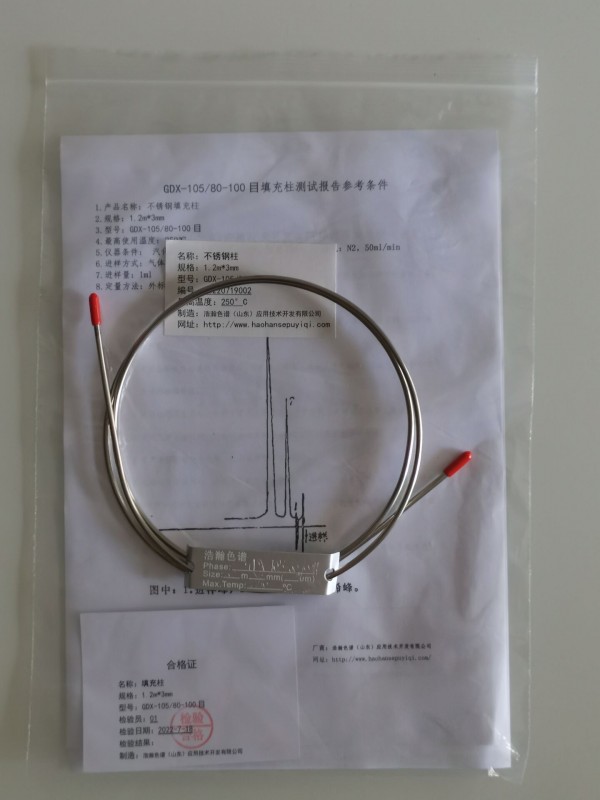

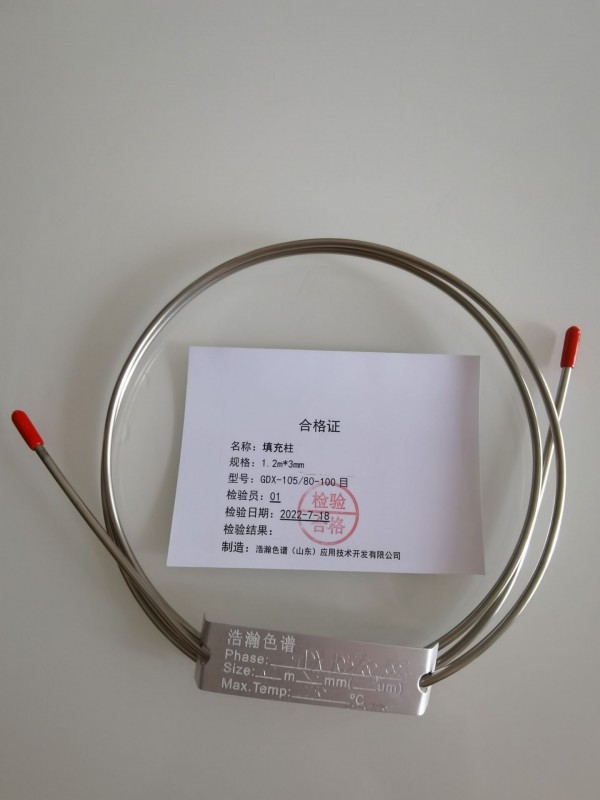

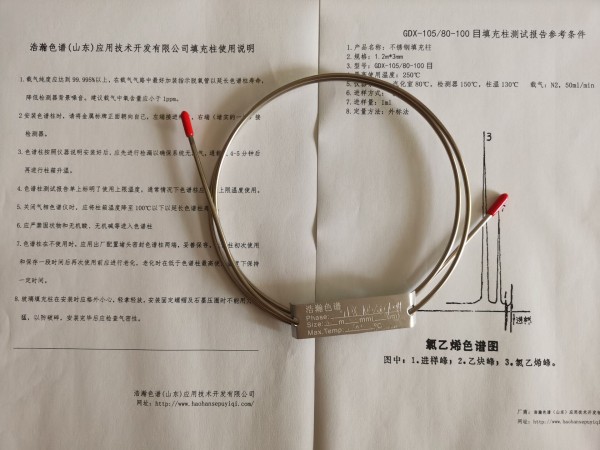

名称：不锈钢柱

规格：1.2m*3mm

型号：GDX-105/80-100目

编号：20220719002

温度：250°C

应用：HJ T 34-1999 固定污染源排气中氯乙烯的测定 气相色谱法

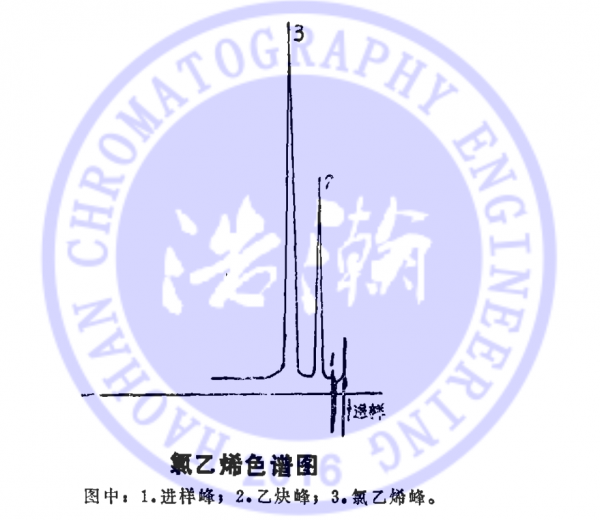

工作场所空气中氯乙烯的气相色谱测定  测试谱图：



Gas Chromatographic Determination of Vinyl Chloride in Workplace Air
Gas Chromatographic Determination of Vinyl Chloride in Workplace Air Details:

Haohan Chromatography (Shandong) Application Technology Development Co., Ltd. established a solvent-desorption gas chromatography method for the determination of vinyl chloride in workplace air. [Method] Sampling by activated carbon tube, desorption of carbon disulfide, separation by GDX-105 column, detection by hydrogen flame ionization detector. [Result] The sampling efficiency was over 90% with activated carbon tube at the speed of 0.2 L/min for 10 min; the method had good reproducibility, the relative standard deviation of different concentrations was 1.98%-5.83%; the average desorption efficiency was 93.7%, and the determination The range is 7.5-120.0 mg/m3; the minimum detectable concentration is 1.5 mg/m3 (sampling 2 L); the penetration capacity is 0.47 mg (100 mg activated carbon). [Conclusion] The indicators of this method all meet the requirements of the research specification of "Workshop Air Monitoring and Inspection Method", and it is suitable for on-site monitoring of vinyl chloride in the workplace air.

Name: stainless steel column

Specifications: 1.2m*3mm

Model: GDX-105/80-100 mesh

Number: 20220719002

Temperature: 250°C

Application: HJ T 34-1999 Determination of Vinyl Chloride in Exhaust Gas from Stationary Pollution Sources Gas Chromatography


Gas chromatographic determination of vinyl chloride in workplace air Test spectrum:
