2m*3mm 4M的GDX-502+2米5Å填充柱

4M的GDX-502+2米5Å填充柱，室内空气，焦炉煤气，炼厂气，天然气，变压器油，多氯联苯，植物油，增塑剂，塑化剂，消毒剂，氨水，氨气，过氧化物，增塑剂，乙酸乙酯，医疗器械，

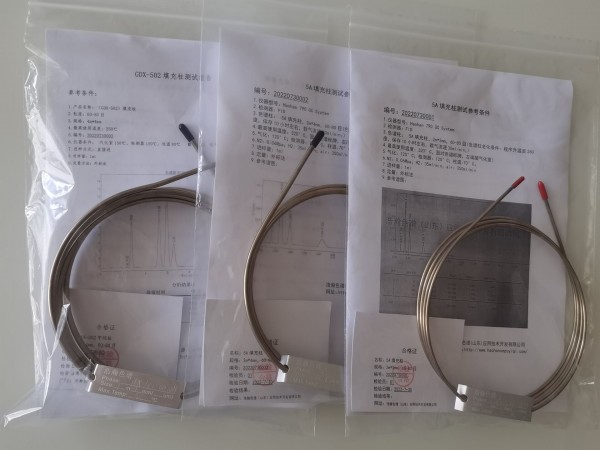

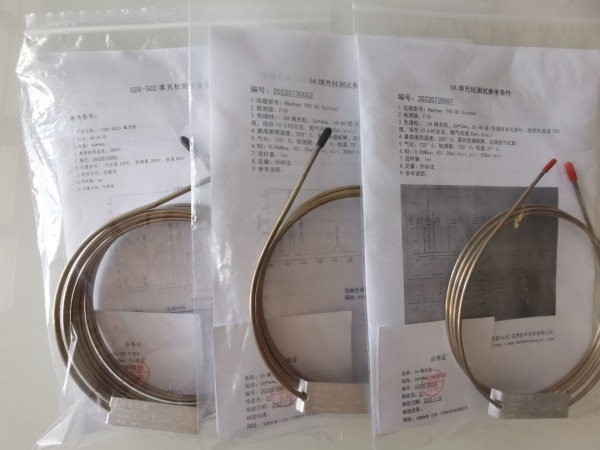

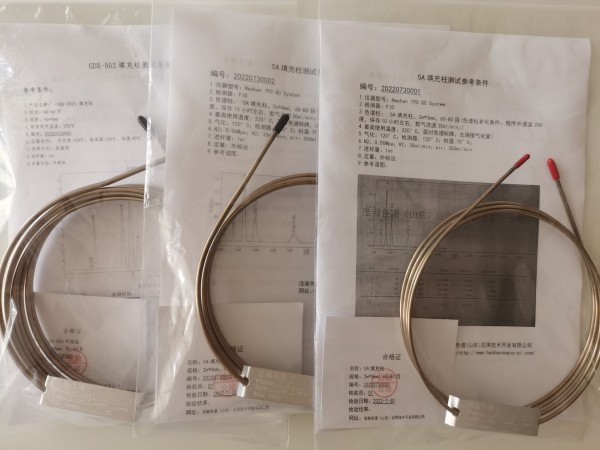

4M的GDX-502+2米5Å填充柱
4M的GDX-502+2米5Å填充柱 详细信息：

名称：GDX-502填充柱

规格：4m*4mm，60-80目

编号：20220730003

ZUI高温度：250°C

名称：5A填充柱

规格：2m*3mm，60-80目

使用温度：320°C

编号：20220730001

应用：天然气中H2,O2,N2,CO,CH4,CO2气体及轻烃乙烯，乙烷，乙炔等分离

柱效高，分离好

天然气的组成有多种成分,研究组成成分的数据在天然气的产业中是比较基础的工作,通过组成数据的时间可以计算出天然气的发热量,密度和相对密度等物理参数。能不能精确得到天然气的组成的分析结果,直接影响到天然气剂量的精确度,影响到天然气生产,运输乃用户等多方面的经济利益,也能表现出一个企业的科技水平。

浩瀚色谱（山东）应用技术开发有限公司从天然气的组成成分分析工作比较,按照分析结果的差异,后得出分析条件,天然气组成分析工作顺利进行。

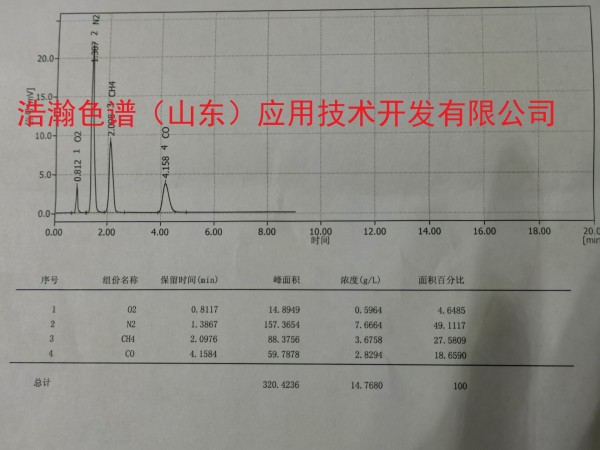

4M的GDX-502+2米5Å填充柱 测试谱图：



4M GDX-502+2m 5A packed column
4M's GDX-502+2m 5A packed column Details:

Name: GDX-502 Packed Column

Specifications: 4m*4mm, 60-80 mesh

Number: 20220730003

ZUI high temperature: 250°C





Name: 5A packed column

Specifications: 2m*3mm, 60-80 mesh

Operating temperature: 320°C

Number: 20220730001

Application: Separation of H2, O2, N2, CO, CH4, CO2 permanent gas and light hydrocarbons ethylene, ethane, acetylene, etc. in natural gas

High column efficiency and good separation



The composition of natural gas has a variety of components, and the study of composition data is a relatively basic work in the natural gas industry. Through the time of composition data, physical parameters such as calorific value, density and relative density of natural gas can be calculated. Whether the analysis results of the composition of natural gas can be accurately obtained directly affects the accuracy of natural gas dosage, affects the economic benefits of natural gas production, transportation and even users, and can also show the technological level of an enterprise.

Haohan Chromatography (Shandong) Application Technology Development Co., Ltd. compared the composition analysis of natural gas, and finally obtained the best analysis conditions according to the difference of the analysis results, so as to ensure the smooth progress of the natural gas composition analysis.

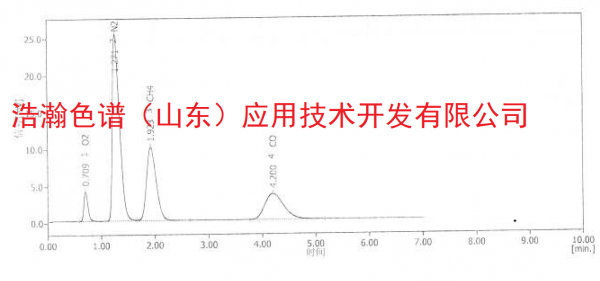

4M GDX-502+2m 5A packed column Test spectrum:
