60-80MESH 岛津TDX-01填充柱2M*4MM

名称：岛津填充柱

型号：TDX-01

规格：2m*4mm，60-80目

高使用温度：240°C

编号：20220805006

• 别名 碳多孔小球-01;;601碳分子筛;碳化高分子小球TDX-01

• 黑色多孔小球。系聚偏氯乙烯在惰性气体中,经180℃热烈解和1000℃灼烧而制成。有碳桥结构和非极性的惰性表面,热稳定性高,柱寿命长。堆积密度0.6g/ml.比表面积800m2/g。孔径1.5~2.0nm。粒度40~60目、60~80目、80~100目、100~120目、120~140目。

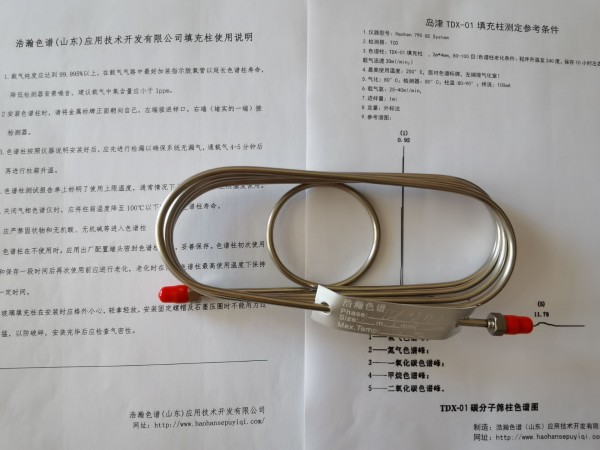

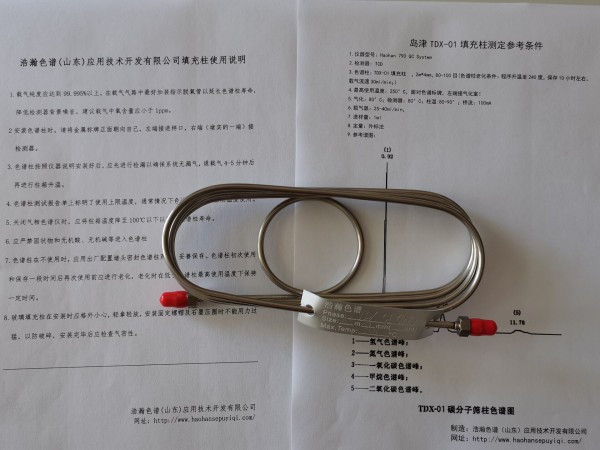

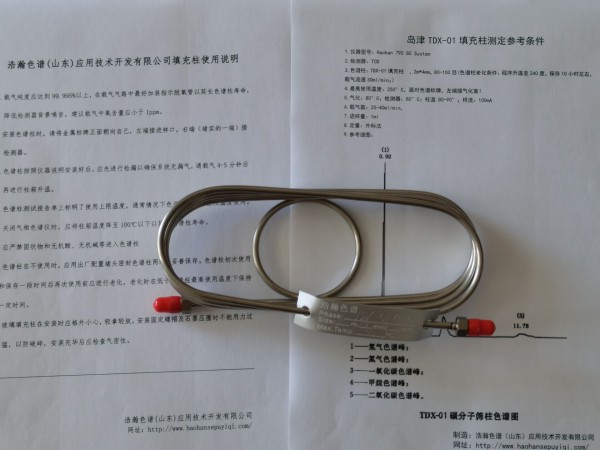

  岛津TDX-01填充柱2M*4MM  测试谱图：



Shimadzu TDX-01 packed column 2M*4MM
Shimadzu TDX-01 Packed Column 2M*4MM Details:

Name: Shimadzu packed column

Model: TDX-01

Specifications: 2m*4mm, 60-80 mesh

Maximum operating temperature: 240°C

Number: 20220805006

Alias Carbon porous beads-01;;601 carbon molecular sieve;carbonized polymer beads TDX-01

Black porous pellets. It is made of polyvinylidene chloride by thermal decomposition at 180 ℃ and burning at 1000 ℃ in an inert gas. It has carbon bridge structure and non-polar inert surface, high thermal stability and long column life. Bulk density 0.6g/ml. Specific surface area 800m2/g. The pore size is 1.5~2.0nm. The particle size is 40~60 mesh, 60~80 mesh, 80~100 mesh, 100~120 mesh, 120~140 mesh.


Shimadzu TDX-01 packed column 2M*4MM test spectrum:
