30m*0.32mm*0.5um HH-FFA毛细管柱的应用

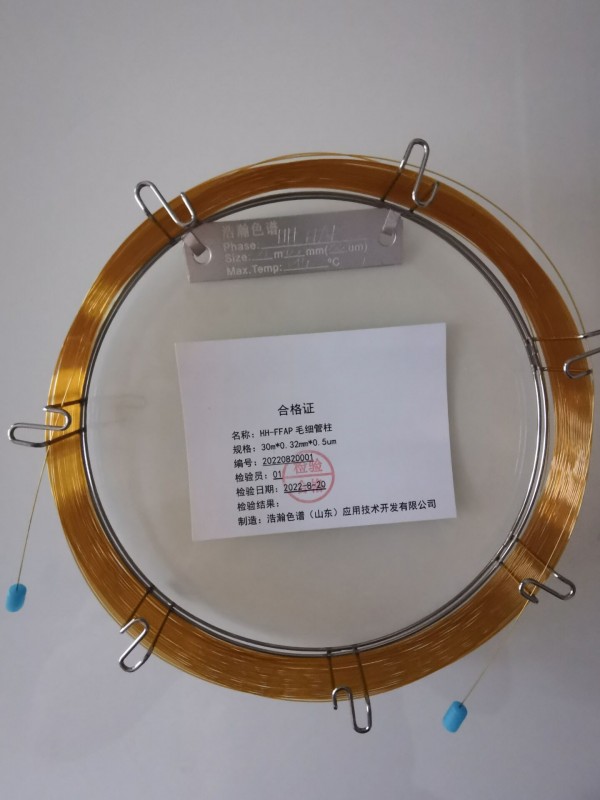

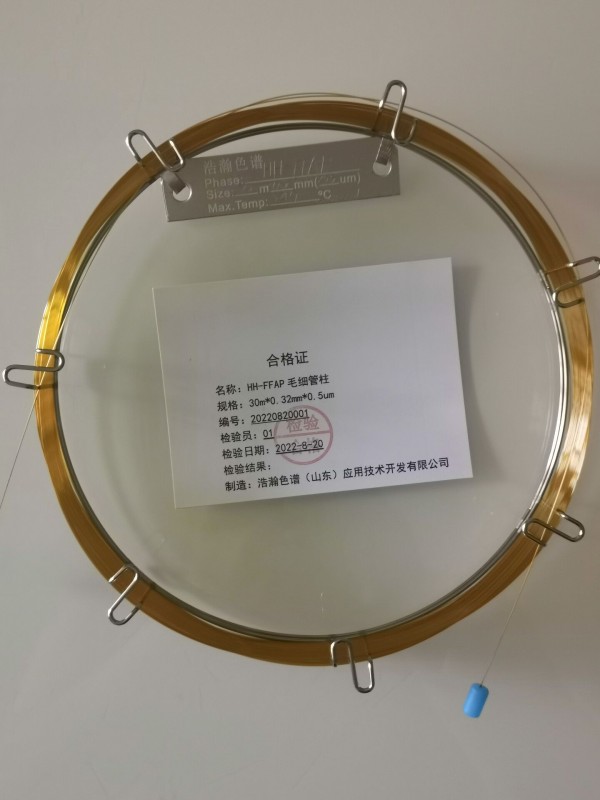

名称：毛细管柱

型号：HH-FFAP

规格：30m*0.32mm*0.5um

高温度：240°C

编号：20220820001

浩瀚色谱（山东）应用技术开发有限公司建立空气中甲醇测定的毛细管柱气相色谱法.方法 采用硅胶管吸附空气中甲醇,经水解吸,用毛细管柱气相色谱仪测定.结果 甲醇浓度在0～250 μg/ml范围内线性关系良好,线性方程为y=5.79x+25.67,相关系数r=0.999 7,检出限为0.10 μg/ml,若采集1.5 L空气样品,则低检出浓度为0.07 mg/m3,平均加标回收率91.91％～97.09％.结论 本方法灵敏、准确,适用于工作场所空气中甲醇的测定.

HH-FFA毛细管柱的应用  测试谱图：


Application of HH-FFA capillary column
Application details of HH-FFA capillary column:

Name: capillary column

Model: HH-FFAP

Specifications: 30m*0.32mm*0.5um

Maximum temperature: 240°C

Number: 20220820001

Haohan Chromatography (Shandong) Application Technology Development Co., Ltd. has established a capillary column gas chromatography method for the determination of methanol in the air. The method uses a silica gel tube to adsorb methanol in the air, absorbs it by water, and determines it by a capillary column gas chromatograph. Results The methanol concentration is between 0 and 250 The linear relationship is good in the range of μg/ml, the linear equation is y=5.79x+25.67, the correlation coefficient r=0.999 7, and the detection limit is 0.10 μg/ml. If a 1.5 L air sample is collected, the minimum detection concentration is 0.07 mg /m3, the average recovery rate of standard addition is 91.91%～97.09%. Conclusion The method is sensitive and accurate, and is suitable for the determination of methanol in workplace air.

Application of HH-FFA capillary column Test spectrum:
