1m*3mm TDX-02B碳分子筛填充柱

黑色多孔小球。系聚偏氯乙烯在惰性气体中，经180℃热裂解和1000℃灼烧制成。有碳桥结构和非极性的惰性表面，热稳定性高，柱寿命长。堆积密度0.6g/ml。比表面积1000m2/g。孔径1.0nm。粒度40～60目、60～80目、80～100目、100～120目、120～140目。

用作气相色谱的固定相，适用于空气中氧、氮、稀有气体、低碳烃类、无机气体中的微量水分及硫化物的分离。
规格：0.5m,1m，2m
英制尺寸：*1/8可定做
应用：气体分离

TDX-02B碳分子筛填充柱 测试谱图：

TDX-02B carbon molecular sieve packed column

Details of TDX-02B carbon molecular sieve packed column:



Name: Filled column



Model: TDX-02



Specification: 1m * 3mm, 60-80 meshes



Maximum operating temperature: 240 ° C



Black perforated ball. PVDC is prepared by pyrolysis at 180 ℃ and burning at 1000 ℃ in inert gas. With carbon bridge structure and non polar inert surface, the column has high thermal stability and long service life. The bulk density is 0.6g/ml. Specific surface area 1000m2/g. Aperture 1.0nm. Grain size: 40-60 mesh, 60-80 mesh, 80-100 mesh, 100-120 mesh, 120-140 mesh.

As the stationary phase of gas chromatography, it is suitable for the separation of trace water and sulfide in oxygen, nitrogen, rare gases, low carbon hydrocarbons, inorganic gases in the air.

Specification: 0.5m, 1m, 2m

Inch size: * 1/8 can be customized

Application: permanent gas separation

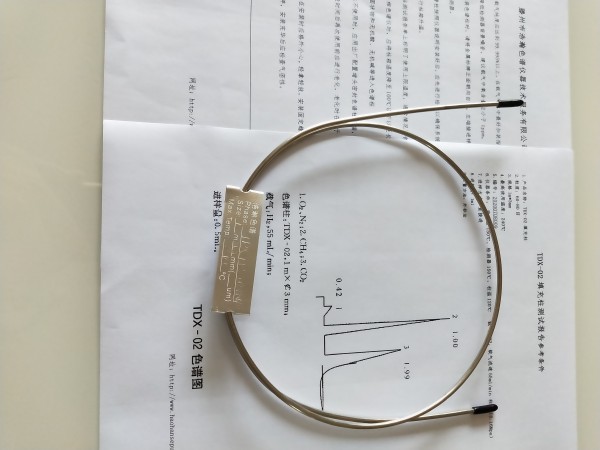

Test Spectrum of TDX-02B Carbon Molecular Sieve Packed Column:
