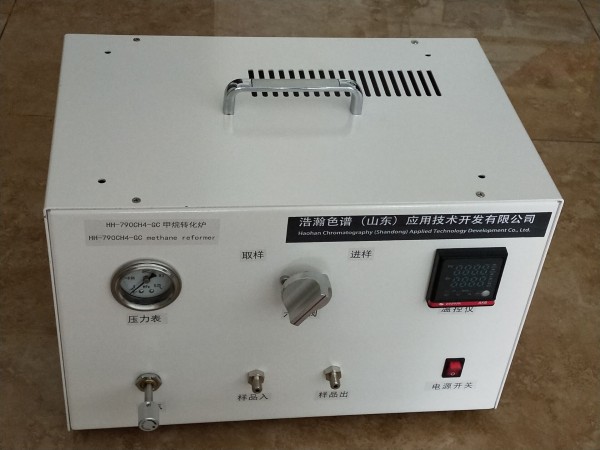

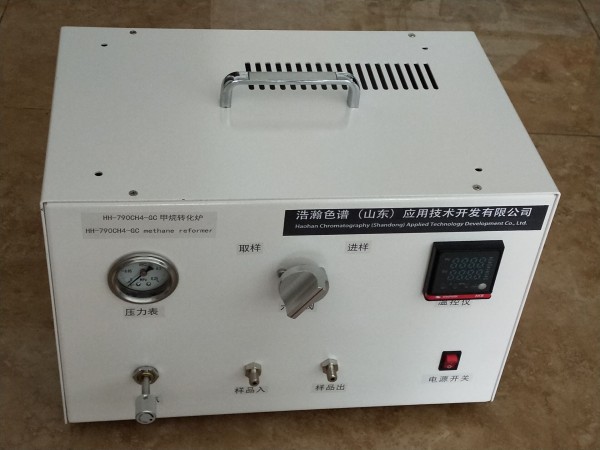

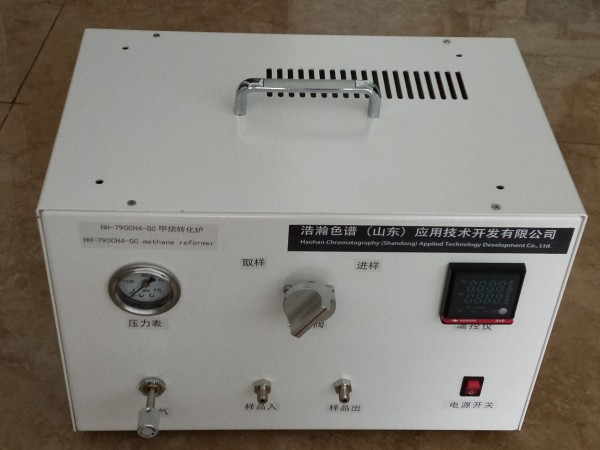

HH-CH4-GC 安捷伦7890B使用便携式甲烷转化炉

名称：便携式甲烷转化炉
型号：HH-CH4-GC
应用：气体一中微量氧化碳，甲烷，二氧化碳的测定 气相色谱法

适合于：安捷伦4890. 5890, 6890, 7890, 7820, 8860, 8890气相色谱仪上
特点：外置式，无需改造仪器，即可实现无缝对接；浩瀚色谱，的产品。

浩瀚色谱（山东）应用技术开发有限公司，采用便携式带镍转化炉的氢火焰离子化气相色谱仪测定聚合级丙烯中微量一氧化碳和二氧化碳。考察了气相色谱仪的操作参数对测定结果的影响,结果表明:Agilent 7890A气相色谱仪的较分析条件为:柱温为50℃、载气流速14.8 mL/min、进样量2mL、阀切换时间为1.8 min。在此条件下,标准气体中一氧化碳、二氧化碳的回收率为94%~101%,不同浓度的样品相对标准偏差为3.21%~5.68%,准确度和精密度均满足标准要求。

安捷伦7890B使用便携式甲烷转化炉 测试谱图：




Model: HH-CH4-GC Haohan Chromatography (Shandong) Application Technology Development Co., Ltd. keeps pace with the times and develops a portable methane reformer gas chromatography method to measure the concentration of carbon monoxide in the air (or gas) in coal mines. The external standard method is quantitative, and the results are accurate and reliable. It was installed and used on the Agilent 7820A gas chromatograph and achieved good results.Agilent 7890B uses portable methane converter

Details of the portable methane converter used by Agilent 7890B:



Name: portable methane converter

Model: HH-CH4-GC

Application: Determination of trace carbon oxide, methane and carbon dioxide in gas I Gas chromatography



Suitable for: Agilent 4890. 5890, 6890, 7890, 7820, 8860, 8890 gas chromatograph

Features: external type, seamless connection can be realized without instrument modification; Vast chromatography, a unique product.



Haohan Chromatography (Shandong) Application Technology Development Co., Ltd. uses a portable hydrogen flame ionization gas chromatograph with a nickel converter to determine trace carbon monoxide and carbon dioxide in polymer grade propylene. The influence of the operating parameters of the gas chromatograph on the determination results was investigated. The results showed that the better analysis conditions of the Agilent 7890A gas chromatograph were: column temperature of 50 ℃, carrier gas flow rate of 14.8 mL/min, sample volume of 2 mL, and valve switching time of 1.8 min. Under this condition, the recovery rate of carbon monoxide and carbon dioxide in the standard gas is 94%~101%, and the relative standard deviation of samples with different concentrations is 3.21%~5.68%. The accuracy and precision meet the standard requirements.



Test spectrogram of Agilent 7890B using portable methane converter:
